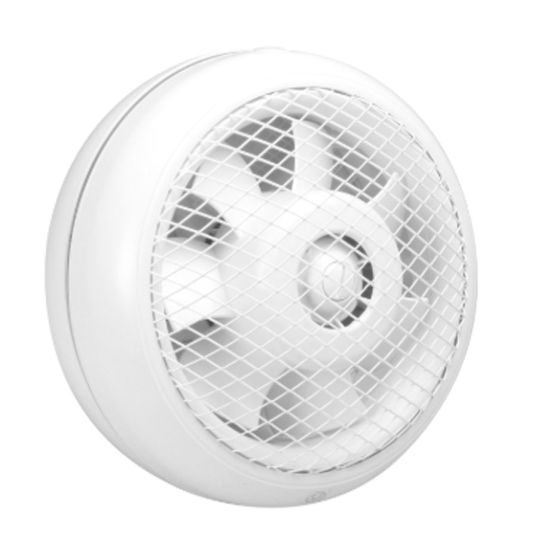

FantechTrade Exhaust Fan 225mm 230 Volt 0.3 Amp 0.648 cu-m/hr 252-267mm Cut-Out 40dBA at 3m White

Description

The HCM wall/window mounted fan is suitable for domestic kitchens and bathrooms. It features powerful air flow performance and quiet operation.

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Available in 3 sizes for 230 V supply All models incorporate air operated shutters Impeller blades are sickle shaped for high performance Quiet operation IPX4 protection rating Weather cap optional for protection against harsh external conditions Suitable for mounting on vertical plain only For wall mounting, a kit of threaded wall rods and sleeves can be supplied as an optional extra caters for walls ranging in thickness from 25 to 300mm
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	HCM-225N
Air Flow Cubic Meters per Hour	0.648 cu-m/hr
Air Flow Litres per Second	0.18 l/sec
Cut-Out Size	252-267 mm
Current	0.3A
Colour	White
Fan Size	225 mm
Duct Size	225 mm
Fan Speed	28 rps
Frequency	50 Hz
IP Rating	IPX4
Motor Type	Squirrel Cage/Capacitor Run/Class B
Material	Plastic
Mounting Method	Ceiling/Wall
Noise Level	40 dBA at 3 mtr
Phase	1 Phase
Width	89 mm
Wattage	40 Watt
Temperature	40 deg C
Voltage	230 Volt
