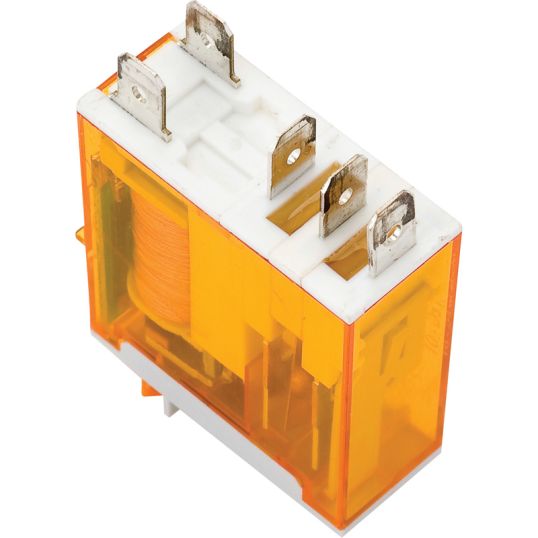

Finder Miniature Relay Plug In Or Faston Connection 1P 1CO 16A 48V 5 Pin Flat

Description

Miniature Relay Plug In Or Faston Connection, 250 Volt AC, 48 Volt AC, 16 Amp, 0.55 kW, 5 Pin Flat, 1 Pole, 1CO, 1350 Ohm, Operating Time: 5 Breaking/15 Making ms, 100000 Cycles, Plug-In Mount/Faston Connection, Silver Nickel, -40 to 70 deg C, 32.8 mm Height, 29 mm Width, 12.4 mm Depth

Key Specifications

Barcode (EAN-13)	8012823302614
SKU	FID46.61.005448VAC
Brand	Finder
Range Name	Series 46
Product Type	Plug-in Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	4661005448VAC
Contact Configuration	1 Changeover
Contact Material	Silver Nickel
Current	16 Amp
Height	32.8 mm
Depth	12.4 mm
Mounting Method	Plug-In/Faston Connection
Number Of Poles	1 Pole
Operating Coil Voltage	48 Volt AC
Operating Time	5 Breaking/15 Making ms
Pin Configuration	5 Pin Flat
Operating Cycles	100000 Cycles
Temperature	-40 to 70 deg C
Power Rating	0.55 kW
Resistance	1350 Ohm
Width	29 mm
Voltage	250 Volt AC
