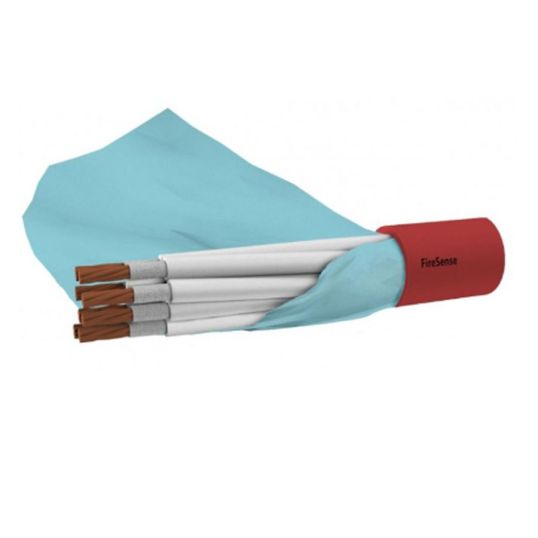

FireSense 0.75 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 250mtr

$FireSense\FireSense_FR-0.75-8CS.jpg$

Description

Fire Rated Cable, 0.75 mm, Stranded Annealed Copper, 450-750 Volt, 8 Core, 15.8 mm Overall Diameter, 250 mtr Length, 158 mm Bend Radius, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Aluminium Foil/Polyester Tape Screen, White Numerals 1-8 Core, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS51W, -25 to 110 deg C, AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	FIRFR-0.75-8CS-250
Brand	FireSense
Product Type	Fire Rated Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RCM certified ActivFire Certified Flame retardant Easy to strip and terminate 4 twists per meter Low smoke zero halogen (PVC Free)
Standard Pack Size	250
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FR-0.75-8CS-250
AS3013 Rating	WS51W
Bend Radius	158 mm
Conductor Size	0.75 mm
Conductor Type	Stranded Annealed Copper
Core Colours	White Numerals 1-8
Insulation Material	X-HF-110
Insulation Thickness	0.7 mm
Number of Cores	8 Core
Overall Diameter	15.8 mm
Screen Material	Aluminium Foil/Polyester Tape
Sheath Colour	Red
Sheath Material	HFS-110-TP
Standards	AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808
Sheath Thickness	1.8 mm
Temperature	-25 to 110 deg C
Voltage	450-750 Volt
