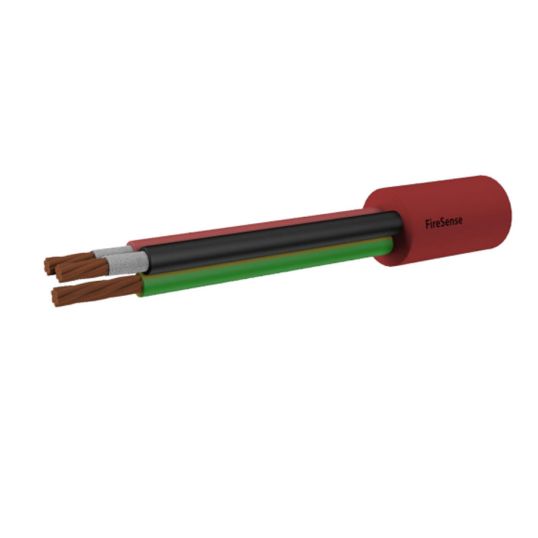

FireSense 4 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr

chevron-left
loader
Loading...

Description

chevron-down
Fire Rated Cable, 4 mm, Stranded Annealed Copper, 0.6-1 kV, 2 Core + Earth, 2.5 mm Earth Conductor, 14.9 mm Overall Diameter, 1 mtr Length, 149 mm Bend Radius, 4.06 Ohm/km Conductor Resistance, Red/Black/Green/Yellow Core, X-HF-110 Insulation, Red/Black/Green/Yellow Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, -25 to 110 deg C, AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808

Key Specifications

chevron-down
SKU
FIRFR-4.00-2C+E
Brand
FireSense
Product Type
Fire Rated Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 2 hr fire rated
  • 110 deg C conductor temperature
  • AS/NZS 3013-WS52W approved, AS/NZS 5000.2 approved, AS/CA S008 compliant
  • RCM certified
  • ActivFire certified
  • Flame retardant
  • Low smoke zero halogen (PVC Free) Third Party Accredited
  • Available ex-stock
Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product FR-4.00-2C+E
AS3013 Rating WS52W
Bend Radius 149 mm
Conductor Resistance 4.06 Ohm/km
Conductor Size 4 mm
Conductor Type Stranded Annealed Copper
Core Colours Black/Red/Green/Yellow
Earth Conductor Size 2.5 mm
Insulation Colour Black/Red/Green/Yellow
Insulation Material X-HF-110
Number of Cores 2 Core + Earth
Overall Diameter 14.9 mm
Sheath Colour Red
Sheath Material HFS-110-TP
Standards AS/NZS 3013 AS/NZS 5000.2 AS/CA S008 AS/NZS 1125 AS/NZS 3808
Temperature -25 to 110 deg C
Voltage 0.6-1 kV
