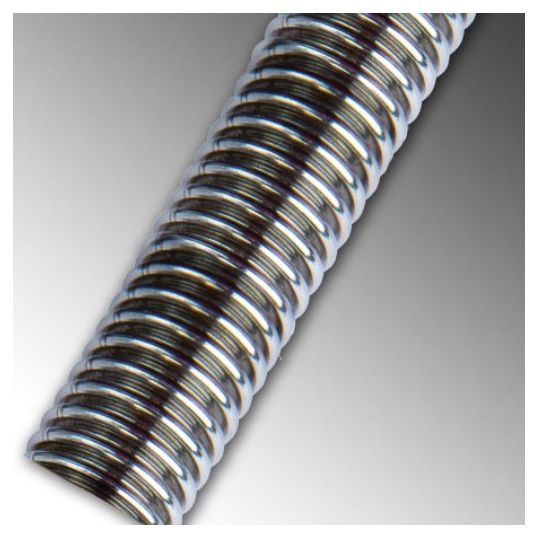

Flexicon S-Line Flexible Conduit Metal Annular Corrugated 20mm 25M 316L Stainless Steel

chevron-left
loader
Loading...

Description

chevron-down
Flexible Conduit, Metal, Annular Corrugated, 20 mm, 16.2 mm ID, 21.6 mm OD, 25 mtr, 45 mm Bend Radius, IP68, 316L Stainless Steel, -50 to 135 deg C

Key Specifications

chevron-down
SKU
FLXFSS20-25M
Brand
Flexicon
Range Name
S-Line
Product Type
Corrugated Conduit

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Inherent Low Fire hazard performance with superior Ingress Protection (IP68) and excellent corrosion resistance
  • Typical applications metro rail stations and tunnels
  • High mechanical strength
  • Pull off strength 100kg (20mm)
  • Excellent corrosion resistance
  • Provides EMC screening
  • Offers Anti-static properties
  • Oil resistant
  • UV resistant
Standard Pack Size 25
UNSPSC Class 39131700
UOM MTR
Vendor Product FSS20-25M
Conduit Size 20 mm
Bend Radius 45 mm
Inside Diameter 16.2 mm
IP Rating IP68
Outside Diameter 21.6 mm
Temperature -50 to 135 deg C
