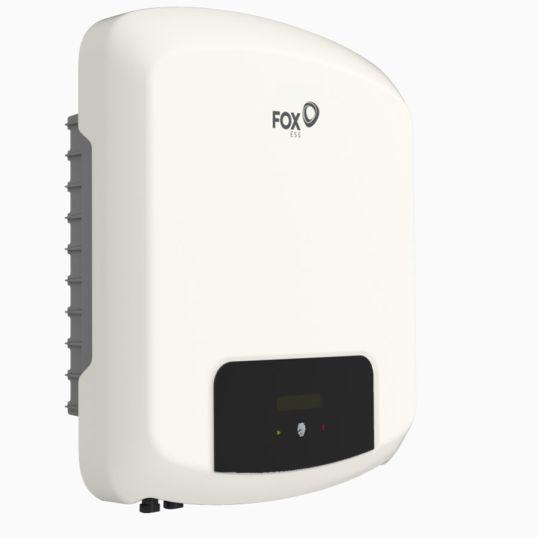

Fox ESS F Series 5KW Dual MPPT WIFI & DC Switch Built-in

$Fox-ESS\Fox-ESS_F-Series.JPG$

Description

Fox ESS offers a range of dual MPPT single-phase inverter offering unparalleled efficiency and performance. Our range starts with the F3000-small and compact and with an ultra-low start-up voltage that will ensure you harvest the most energy possible from your solar panels.

Key Specifications

SKU	FSSFOX-F-5-AU
Brand	Fox ESS
Range Name	F Series
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High Performance - Low start-up voltage wide voltage range 97.4% maxium effiency Easy Installation - Flexible configuration plug and play set-up IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation Remote Monitoring - Monitor your system remotely via smartphone app or web portal Remote Monitoring - Monitor your system remotely via smartphone app or web portal
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	FOX-F-5-AU
AC Max. Apparent Power	5500 VA
AC Nominal Voltage	220 / 230 / 240 Volt
AC Operating Frequency	50/60 Hz
AC Output Power	5 kW
AC Output Current	22.7 Amp
Communication Port	Meter / CT / RS485 / DRM
Cooling Method	Natural
DC Input Power	10000 Watt
DC Max. Input Current	20 Amp
DC Input Voltage	600 Volt
DC MPPT Voltage Range	60-550 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	60 Volt
DC Switch	Optional
Depth	155 mm
Display Type	LCD / LED / App / Website
Efficiency	97.60%
Height	335 mm
IP Rating	IP65
European Weighted Efficiency	97%
Max. Operating Altitude	3000 mtr
Noise Level	<30 dB
MPPT Efficiency	99.90%
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C (Derating Above 45 deg C)
Phase	1 Phase
Power Factor	1 (Adjustable from 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100% No Condensation
Topology	Non-isolated
Total Harmonic Distortion	<3%
Width	358 mm
