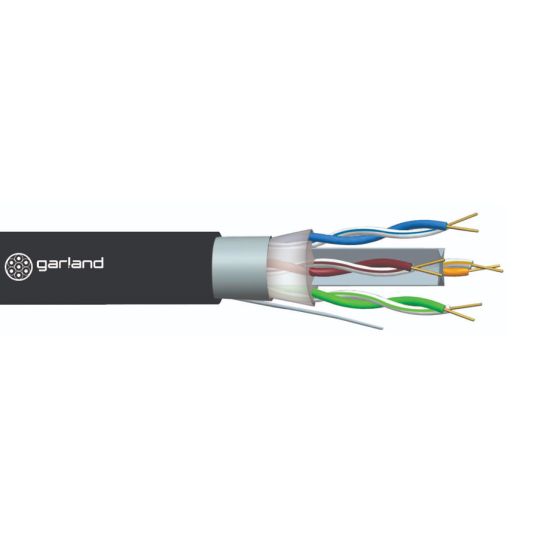

Garland Pro Series F/UTP LAN Cable Cat6A 4 Pair Copper Foam PE/LLDPE Black Jelly Filled Underground 305m

$Garland\Garland_FTPL6AJFBK305.jpg$

Description

CAT 6A LAN Cable F/UTP, 0.56 mm Nominal Conductor Diameter, <=7.65 Ohm/100m Conductor Resistance, 500 MHz Frequency Bandwidth, Solid Strands, F/UTP, Cat 6A, 4 Pair, 80 mm Installation Bend Radius, 100 N Max. Pulling Force, Annealed Copper Conductor, Foam Polyethylene Insulation, Aluminium Screen, UV Stabilized LDPE Sheath, Black Sheath, 15 to 75 deg C, 305 mtr Length, 8 mm Outside Diameter

Key Specifications

SKU	GARFTPL6AJFBK305
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Outdoor cable UV Stabilized Screened Water Blocked/Underground
Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FTPL6AJFBK305
Bend Radius	80 mm Installation
Conductor Diameter	0.56 mm Nominal
Cable Type	Cat 6A
Conductor Material	Annealed Copper
Conductor Resistance	<=7.65 Ohm/100m
Frequency Bandwidth	500 MHz
Insulation Material	Foam Polyethylene
Max. Pulling Force	100 N
Outside Diameter	8 mm
Pair Count	4 Pair
Screen Material	Aluminium
Sheath Colour	Black
Sheath Material	UV Stabilized LDPE
Shielded Type	F/UTP
Stranding	Solid
Temperature	15 to 75 deg C
