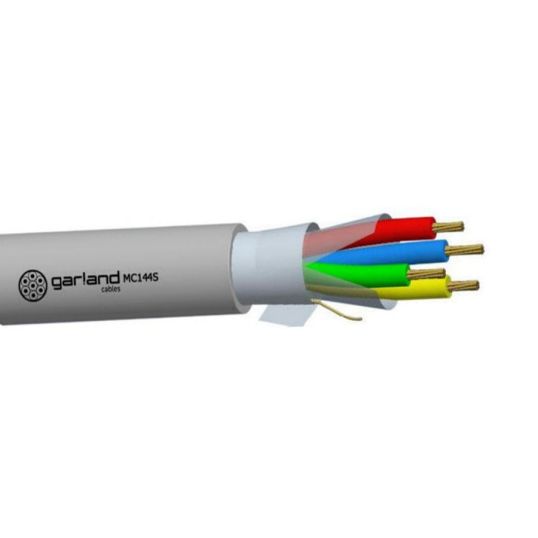

Garland 0.44mm 4 Core Grey Data Cable Overall Screened PVC/PVC

Description

Data Cable, 0.44 mm, Annealed Copper, 4 Core, 14/0.2 mm Strands, Overall Screened Screen, 5.65 mm Overall Diameter, 56 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 123 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 45.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Red/Blue/Green/Yellow Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 BS4737-3.30 AS 1049

Key Specifications

Barcode (EAN-13)	9329849002589
SKU	GARMC144S100
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC144S100
Bend Radius	Static 56 mm
Core Colours	Red/Blue/Green/Yellow
Conductor Resistance	45.2 Ohm/km
Elongation	Insulation: >100% Outer Sheath: >100%
Conductor Type	Annealed Copper
Conductor Size	0.44 mm
Insulation Resistance	50 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.3 mm
Number of Cores	4 Core
Overall Diameter	5.65 mm
Pulling Tension	123 N
Screen Coverage	100%
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Material	PVC
Sheath Thickness	0.7 mm
Sheath Colour	Grey
Stranding	14/0.2 mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >12 MPa
Standards	AS/ACIF S008 BS4737-3.30 AS 1049
