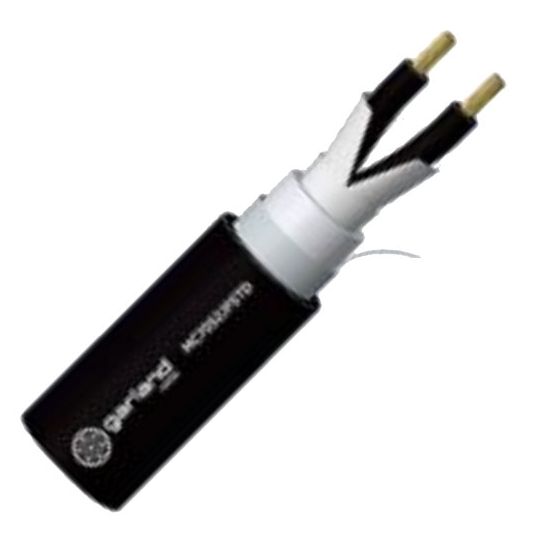

Garland Traffic Loop Feeder Cable 2 Core 1.5mm LDPE/AL/PVC Black

$Garland\Garland_MC7052JFSTD500.jpg$

Description

Loop Detector Cable, 1.5 mm, Bare Copper, 2 Core, 7/0.525 mm Strands, 8.5 mm Overall Diameter, Static 100 mm Bend Radius, 0.4 mm Insulation Thickness, 0.8 mm Sheath Thickness, DC: 13.6 Ohm/km Conductor Resistance, 20000 GOhm/m Insulation Resistance, 100% Screen Coverage, Aluminium Foil/Polyester Tape Screen, LDPE Insulation, 4V-75 PVC Sheath, Black Sheath, -15 to 90 deg C, AS 2276.2

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMC7052JFSTD500
Brand	Garland
Product Type	Loop Detector Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC7052JFSTD500
Bend Radius	Static 100 mm
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Type	Bare Copper
Conductor Size	1.5 mm
Insulation Resistance	20000 GOhm/m
Insulation Material	LDPE
Insulation Thickness	0.4 mm
Number of Cores	2 Core
Overall Diameter	8.5 mm
Screen Coverage	100%
Screen Material	Aluminium Foil/Polyester Tape
Sheath Material	4V-75 PVC
Sheath Thickness	0.8 mm
Sheath Colour	Black
Stranding	7/0.525 mm
Temperature	-15 to 90 deg C
Standards	AS 2276.2
