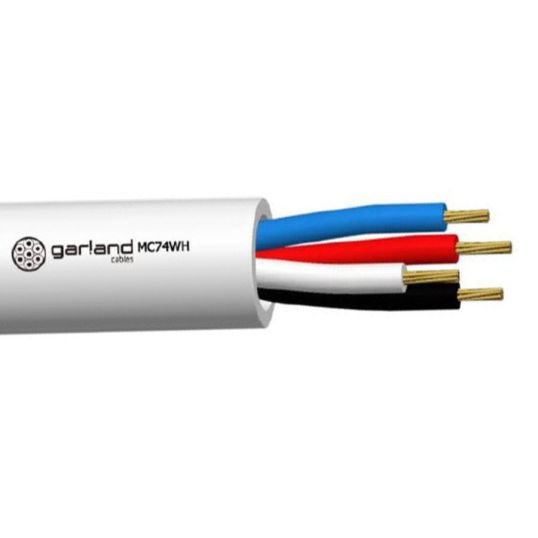

Garland 0.22mm 4 Core White Security Cable PVC/PVC

Description

Security Cable, 0.22 mm, Tinned Annealed Copper, 4 Core, 7/0.2 mm Strands, 3.6 mm Overall Diameter, 36 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.36 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 56 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 93.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, PVC Sheath, White Sheath, -15 to 70 deg C, AS/ACIF S008 BS3737-3.30 AS 1049

Key Specifications

Barcode (EAN-13)	9329849005610
SKU	GARMC74WH100
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC74WH100
Bend Radius	Static 36 mm
Conductor Resistance	93.3 Ohm/km
Conductor Size	0.22 mm
Conductor Type	Tinned Annealed Copper
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Thickness	0.28 mm
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Number of Cores	4 Core
Overall Diameter	3.6 mm
Pulling Tension	56 N
Sheath Colour	White
Standards	AS/ACIF S008 BS3737-3.30 AS 1049
Sheath Thickness	0.36 mm
Sheath Material	PVC
Stranding	7/0.2 mm
Tensile Strength	Before Aging: >12 MPa
Temperature	-15 to 70 deg C
