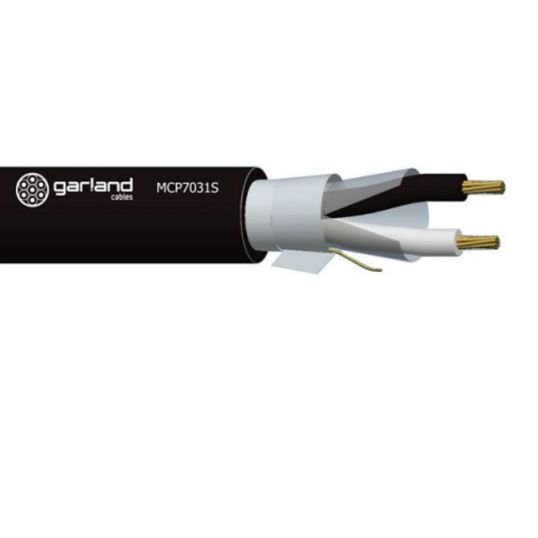

Garland 0.5mm 2 Pair Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.5 mm, Class 2 Stranded Annealed Copper, 110 Volt AC/150 Volt DC, 2 Pair, 7 Strands, Overall Screened Screen, 6.4 mm Overall Diameter, 115.2 mm Bend Radius, <=38.4 Ohms/km Conductor Resistance, 0.4 mm Insulation Thickness, 0.7 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Laminate Screen, Black with White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -15 to 90 deg C, AS/NZS 1125 AS/NZS 3808 IEC 60332-1

Key Specifications

Barcode (EAN-13)	9329849035723
SKU	GARMCP7032S500-BW
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP7032S500-BW
Conductor Resistance	<=38.4 Ohms/km
Bend Radius	115.2 mm
Conductor Size	0.5 mm
Conductor Type	Class 2 Stranded Annealed Copper
Core Colours	Black with White Numerals
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Overall Diameter	6.4 mm
Number of Pairs	2 Pair
Screen Coverage	100%
Screen Format	Overall Screened
Sheath Colour	Black
Screen Material	Aluminium/Polyester Laminate
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 IEC 60332-1
Sheath Thickness	0.7 mm
Stranding	7
Temperature	-15 to 90 deg C
Voltage	110 Volt AC/150 Volt DC
