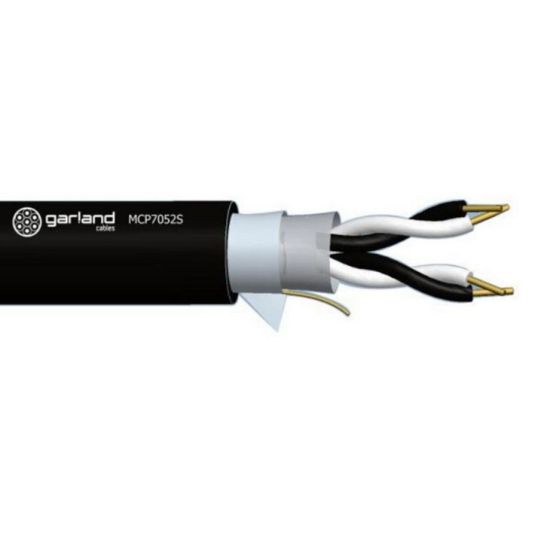

Garland 1.5mm 2 Pair Instrumentation Cable Unarmoured Overall Screened

$Garland\Garland_MCP7052S.jpg$

Description

Instrumentation Cable, Unarmoured, 1.5 mm, Annealed Copper, 110-150 Volt, 2 Pair, 7/0.5 mm Strands, Overall Screened Screen, 8.8 mm Overall Diameter, 88 mm Static Bend Radius, Insulation: >100% Outer Sheath: >100% Elongation, 384 N Pulling Tension, >12 MPa Tensile Strength, DC: 13.6 Ohm/km Conductor Resistance, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -15 to 90 deg C, AS/NZS 1125 AS/NZS 3808 IEC 60332-1

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMCP7052S100
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP7052S100
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Size	1.5 mm
Bend Radius	Static 88 mm
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	V-90HT PVC
Insulation Thickness	0.3 mm
Number of Pairs	2 Pair
Overall Diameter	8.8 mm
Pulling Tension	384 N
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Thickness	0.8 mm
Standards	AS/NZS 1125 AS/NZS 3808 IEC 60332-1
Sheath Material	5V-90 PVC
Temperature	-15 to 90 deg C
Stranding	7/0.5 mm
Tensile Strength	>12 MPa
Voltage	110-150 Volt
