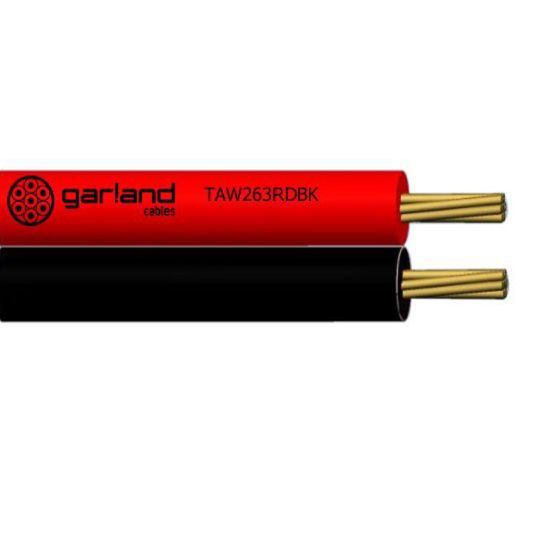

Garland Pro Series Automotive Cable 2 Core Figure 8 1.84mm PVC Red/Black

$Garland\Garland_TAW263RDBK.jpg$

Description

Automotive Cable Figure 8, 1.84 mm, Annealed Copper, 240 Volt, 2 Core, 26/0.3 mm Strands, 3 mm x 6.5 mm Overall Diameter, 0.6 mm Insulation Thickness, 10.05 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, Red/Black Insulation, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARTAW263RDBK500
Brand	Garland
Product Type	Automotive Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121800
UOM	MTR
Vendor Product	TAW263RDBK500
Conductor Resistance	10.05 Ohm/km
Conductor Size	1.84 mm
Conductor Type	Annealed Copper
Insulation Colour	Black/Red
Insulation Material	PVC
Insulation Resistance	50 Mohm/km
Number of Cores	2 Core
Insulation Thickness	0.6 mm
Overall Diameter	3 mm x 6.5 mm
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	26/0.3 mm
Temperature	-15 to 70 deg C
Voltage	240 Volt
