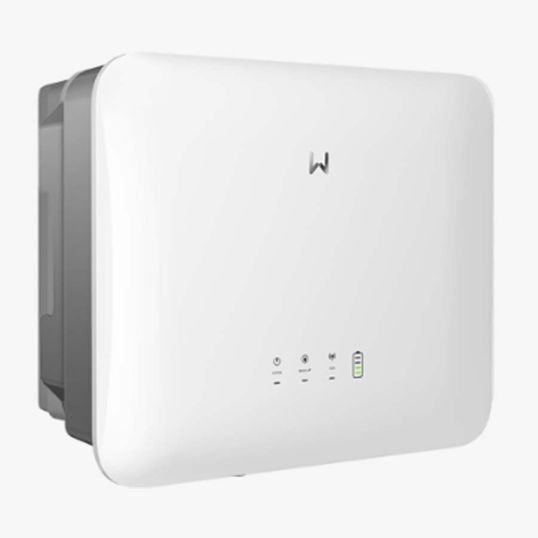

Goodwe SBP G2 Series Solar Inverter AC-Coupled Retrofit 5000W 1 Phase

Description

Solar Inverter, 1 Phase, 5000 Watt AC Output, 5000 VA AC Max. Apparent, 220/230/240 Volt, 50/60 Hz, 21.7 Amp AC Output, 1 (Adjustable From 0.8 Leading To 0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 95.5% Efficiency, Isolated, 3000 mtr (>2000 m Derating) Max. Altitude, Battery: Lithium-Ion, 48 Volt, CAN, RS485, WiFi / WiFi + LAN / 4G, Natural Convection Cooling, <30 dB, Wall Mounting, IP65,-25 to 60 deg C, 0-95% Relative Humidity, 434.9mm Height, 505.9mm Width, 154.8mm Depth, 19.5 kg

Key Specifications

SKU	GDWGW5000-SBP-20
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Smart control and nonitoring Superb Safety & Reliability Friendly & Thoughtful Design Flexible & Adaptable Applications
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW5000-SBP-20
AC Max. Apparent Power	5000 VA
AC Nominal Voltage	220-230-240 Volt
AC Operating Frequency	50/60 Hz
AC Output Power	5000 Watt
Communication Port	CAN/RS485/WiFi/WiFi + LAN/4G
AC Output Current	21.7 Amp
Battery	Lithium-Ion/48 Volt
Cooling Method	Natural Convection
Depth	154.8 mm
Efficiency	95.50%
Height	434.9 mm
IP Rating	IP65
Max. Operating Altitude	3000 mtr (2000 mtr Derating)
Mounting Method	Wall
Noise Level	<30 dB
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable From 0.8 Leading To 0.8 Lagging)
Relative Humidity	0-95%
Topology	Isolated
Total Harmonic Distortion	<3%
Width	505.9 mm
