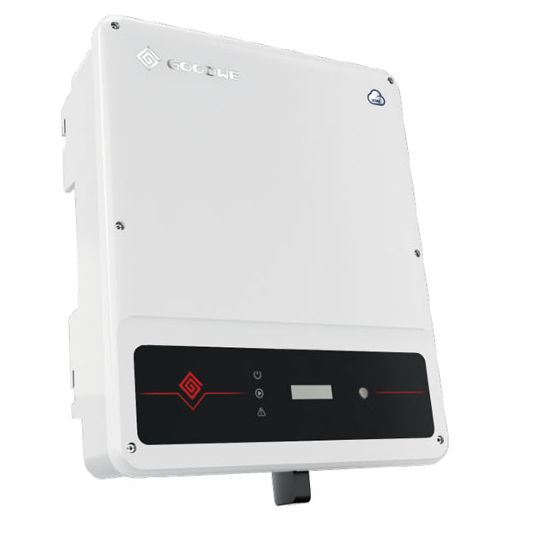

Goodwe SDT G2 Series Solar Inverter 2 MPPT Three Phase 5kW RS485/WIFI/LAN

$Goodwe\Goodwe_GW5K-DTG2_GW6K-DTG2.jpg$

Description

Solar Inverter Dual MPPT, 3 Phase Phase, 7500 Watt DC Input, 1000 Volt DC Input, 620 Volt DC Nominal, 180-850 Volt DC MPPT Voltage Range, 160 Volt DC Start-up, 12.5 Amp DC Max. Input, 2 MPPTs, 5 kW AC Output, 5500 VA AC Max. Apparent, 400 Volt 3L/N/PE, 50/60 Hz, 8 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.982 Efficiency, >97.6% European Weighted Efficiency, Transformerless, RS485/Wi-Fi/LAN, LCD and LED Display, Natural Convection Cooling, IP65, -30 to 60 deg C

Key Specifications

SKU	GDWGW5K-DT(G2)
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Built-in anti reverse current Arc fault circuit interrupter
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW5K-DT(G2)
AC Max. Apparent Power	5500 VA
AC Nominal Voltage	400 Volt 3L/N/PE
AC Operating Frequency	50/60 Hz
AC Output Power	5 kW
AC Output Current	8 Amp
Communication Port	RS485/Wi-Fi/LAN
Cooling Method	Natural Convection
DC Input Power	7500 Watt
DC Max. Input Current	12.5 Amp
DC Input Voltage	1000 Volt
DC MPPT Voltage Range	180-850 Volt
DC Nominal Voltage	620 Volt
DC Start-up Voltage	160 Volt
Depth	147 mm
Display Type	LCD and LED
Efficiency	0.982
Height	433 mm
IP Rating	IP65
European Weighted Efficiency	>97.6%
Number of MPPTs	2
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Width	354 mm
