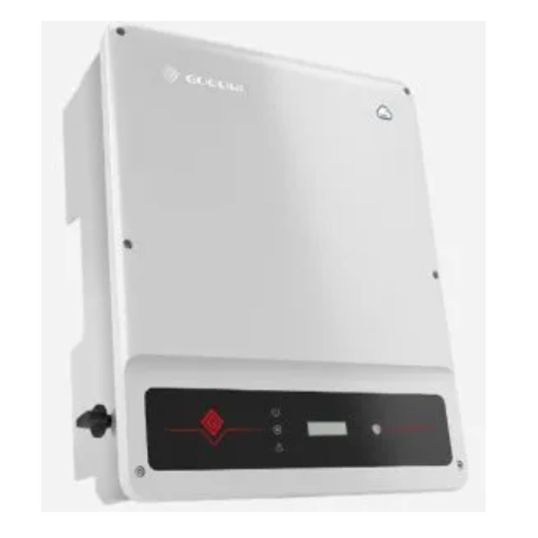

Goodwe SDT G2 Series Residential Inverter 8000 Watt 2 MPPT 3 PH 400V 3L/N/PE 12.8A IP65

$Goodwe\Goodwe_SDT-G2_Series.jpg$

Description

Solar Inverter Residential, 3 Phase Phase, 12000 Watt DC Input, 1100 Volt DC Input, 140-950 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 30 Amp DC Max. Input, 2 MPPTs, 8000 Watt AC Output, 8000 VA AC Max. Apparent, 400 Volt, 50 Hz, 12.8 Amp AC Output, 1 Power Factor, <3% Total Harmonic Distortion, 0.984 Efficiency, 0.975 European Weighted Efficiency, Non-Isolated, 3000 mtr Max. Altitude, Integrated DC Switch, RS485/Wi-Fi/LAN, Natural Convection Cooling, IP65, -30 to 60 deg C

Key Specifications

SKU	GDWGW8KAU-DT
Brand	Goodwe
Product Type	Solar Inverter Residential

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW8KAU-DT
AC Nominal Voltage	400 Volt
AC Max. Apparent Power	8000 VA
AC Operating Frequency	50 Hz
AC Output Current	12.8 Amp
AC Output Power	8000 Watt
Communication Port	RS485/Wi-Fi/LAN
DC Max. Input Current	30 Amp
Cooling Method	Natural Convection
DC Input Power	12000 Watt
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	140-950 Volt
DC Start-up Voltage	180 Volt
DC Switch	Integrated
Depth	175 mm
Efficiency	0.984
Height	511 mm
European Weighted Efficiency	0.975
IP Rating	IP65
Max. Operating Altitude	3000 mtr
Phase	3 Phase
Operating Temperature	-30 to 60 deg C
Number of MPPTs	2
Power Factor	1
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Width	415 mm
Topology	Non-Isolated
