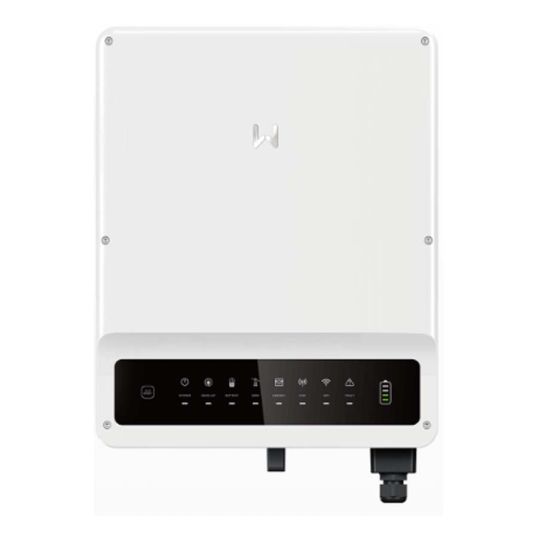

Goodwe ET Series Hybrid Inverter 8000W 2MPPT Three Phase 1000V 12.5/22A IP66

$Goodwe\Goodwe_KL-ET.jpg$

Description

Hybrid Inverter, 3 Phase, 10640 Watt DC Input, 1000 Volt DC Input, 620 Volt DC Nominal, 200-850 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 12.5/22 Amp DC Max. Input, 2 MPPTs, 8000 Watt AC Output, 8800 VA AC Max. Apparent, 400/380 Volt, 50/60 Hz, 13.5 Amp AC Output, 1 (Adjustable From 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 97.6% Efficiency, 96.8% European Weighted Efficiency, 99.9% MPPT Efficiency, Non-Isolated, 4000 mtr Max. Altitude, Battery: Lithium-Ion, WiFi / WiFi+LAN (Optional) / 4G (Optional), Natural Convection Cooling, Wall Mounting, IP66,-35 to 60 deg C, 0-95% Relative Humidity, 516mm Height, 415mm Width, 180mm Depth, 25 kg

Key Specifications

SKU	GDWGW8KL-ET
Brand	Goodwe
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	98.2% maximum system efficiency 100% unbalanced output <10ms UPS-level switching
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW8KL-ET
AC Operating Frequency	50/60 Hz
AC Output Current	13.5 Amp
AC Max. Apparent Power	8800 VA
AC Nominal Voltage	400-380 Volt
AC Output Power	8000 Watt
Battery	Lithium-Ion
Communication Port	WiFi/WiFi+LAN/4G
Cooling Method	Natural Convection
DC Input Power	10640 Watt
DC Input Voltage	1000 Volt
DC MPPT Voltage Range	200-850 Volt
DC Max. Input Current	12.5-22 Amp
DC Nominal Voltage	620 Volt
DC Start-up Voltage	180 Volt
Depth	180 mm
Efficiency	97.60%
European Weighted Efficiency	96.80%
Height	516 mm
IP Rating	IP66
Max. Operating Altitude	4000 mtr
Mounting Method	Wall
MPPT Efficiency	99.90%
Operating Temperature	-35 to 60 deg C
Number of MPPTs	2
Phase	3 Phase
Power Factor	1 (Adjustable From 0.8 Leading-0.8 Lagging)
Relative Humidity	0-95%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	415 mm
