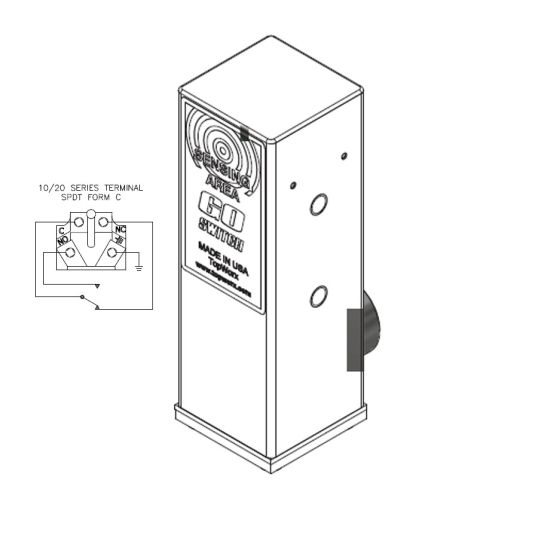

GO Switch 10/20 Series Limit Switch SPDT
Loading...
Description
Limit Switch, SPDT Configuration, NEMA 4X/6/6P Enclosure, IP66/67/68, Brass Body, -50 to 105 deg C, 1.5 sq-in x 4-9/16 in Length, 4.49 in Height, 1-1/2 in Width, 1.99 in Depth
Key Specifications
| SKU |
GOS11-12110-00M
|
|---|---|
| Brand |
GO Switch
|
| Product Type |
Limit Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 11-12110-00M |
| Body Material | Brass |
| Contact Configuration | SPDT |
| Depth | 1.99 inch |
| Enclosure Type | NEMA 4X/6/6P |
| IP Rating | IP66/67/68 |
| Height | 4.49 inch |
| Temperature | -50 to 105 deg C |
| Width | 1-1/2 inch |
