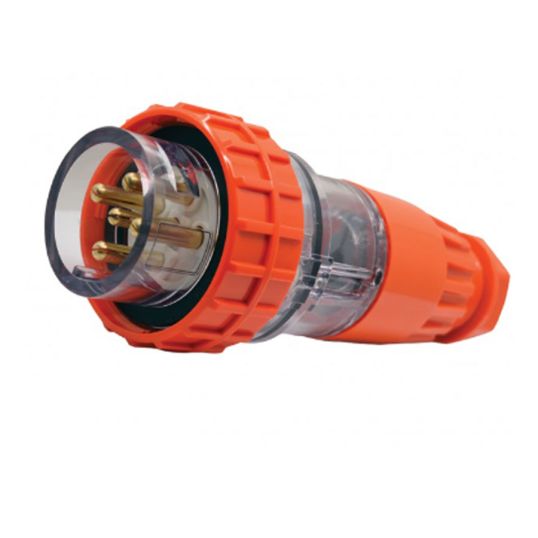

GSME Trader Buffalo Extension Plug 50A 500V 5 Pin 10-25mm M32 x 1.5 IP66

Description

Extension Plug, 500 Volt, 50 Amp, 5 Pin Round, 4.1 mm Diameter Terminal Capacity, 10-25 mm Cable Entry, M32 x 1.5 mm Cable Gland Size, 11-25 sq-mm Cable Nominal Diameter, IP66, 178 mm Height

Key Specifications

Barcode (EAN-13)	9349703031128
SKU	GSMBUP550
Brand	GSME Trader
Range Name	Buffalo
Product Type	Extension Plugs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Straight body format providing a more traditional design Ribbed lock ring for secure fitment and gripping with gloved hands Rear cord entry and cable gland ensuring IP66 rating Insulated pins in accordance to AS/NZS3112 (BUP310, BUP315, BUP310L, BUP320F) Internal cable clamp to support electrical connections Size 1 Single and Three Phase suits Smaller to Medium Loads Size 2 Single and Three Phase suits Medium to Large loads
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BUP550
Cable Nominal Diameter	11-25 sq-mm
Cable Gland Size	M32 x 1.5 mm
Cable Entry	10-25 mm
Current	50 Amp
Height	178 mm
IP Rating	IP66
Pin Configuration	5 Pin Round
Terminal Capacity	4.1 mm Diameter
Voltage	500 Volt
