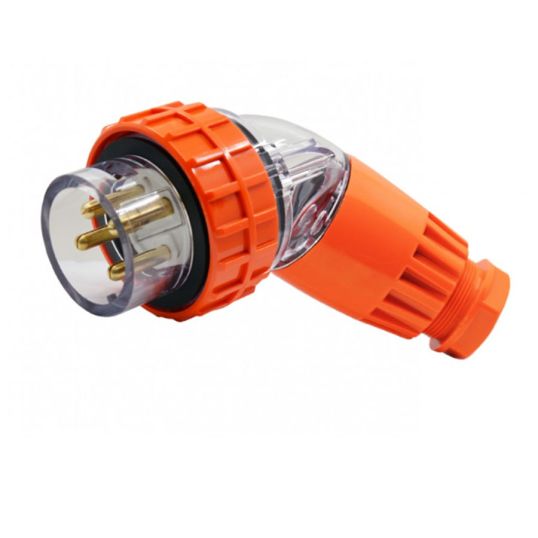

GSME Trader Plug Angled 1/3PH 40A 500V 4 Pin Round Polycarbonate Orange IP66

$GSME\GSME_BUPA440.jpg$

Description

Plug Angled, 500 Volt, 40 Amp, 1/3 Phase, 4 Pin Round, 4.1 mm Diameter Terminal Capacity, Cable Gland, M37x1.5 Cable Gland Size, 11-16 sq-mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, 126.5 mm Height, 79.8 mm Width, 161 mm Depth

Key Specifications

Barcode (EAN-13)	9349703031241
SKU	GSMBUPA440
Brand	GSME Trader
Range Name	Buffalo
Product Type	Plugs Angled

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Straight body format providing a more traditional design Angled format when space is limited, or to reduce plug & cable protrusion as cable is angled downwards. Ribbed Lock ring for secure fitment & gripping with gloved hands Internal cable clamp to support electrical connections
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BUPA440
Cable Gland Size	M37x1.5
Cable Entry	Cable Gland
Colour	Orange
Cable Nominal Diameter	11-16 sq-mm
Current	40 Amp
Depth	161 mm
Height	126.5 mm
IP Rating	IP66
Phase	1/3 Phase
Material	Polycarbonate
Pin Configuration	4 Pin Round
Terminal Capacity	4.1 mm Diameter
Voltage	500 Volt
Width	79.8 mm
