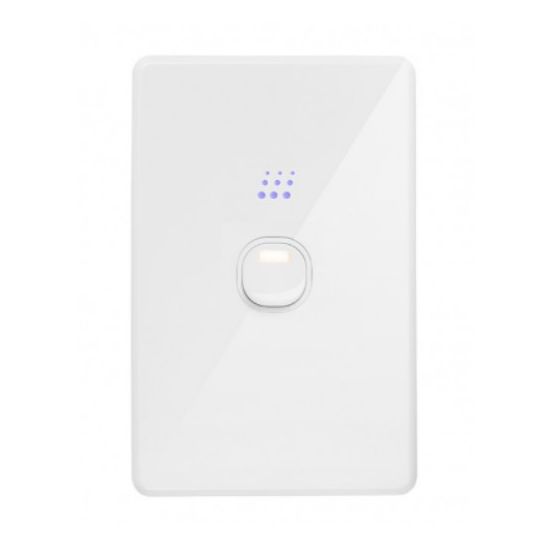

GSME Light Dimmer Switch Wall Mount 1 Gang 250V w/3 Skins Vertical White

chevron-left
loader
Loading...

Description

chevron-down
Light Dimmer Switch, 250 Volt Switch, 1 Amp, 2-250 Watt, 50 Hz, 1 Gang, Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, 4 x 1.5 sq-mm Terminal Capacity, UV Stabilised Polycarbonate, White, 116 mm Height, 42 mm Width, 76 mm Depth, With 3 Skins

Key Specifications

chevron-down
Barcode (EAN-13)
9349703013803
SKU
GSMPMPUSWV1GS
Brand
GSME Trader
Range Name
Powermesh
Product Type
Dimmers

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres
  • Switch terminals have 4 mm bore to suit 1.5 sq-mm cable
  • Mini dimmer indicator displays the brightness level
  • Soft touch dolly dimming control
  • Trailing edge dimmer
  • Software control using the Zimi app, available on the Google Play and App Store
  • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
  • Master and slave switch for 2 and 3 way dimming
  • Minimum and maximum brightness setting for increased dimming compatibility without flicker
  • Inbuilt scheduling
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product PMPUSWV1GS
Colour White
Current 1 Amp
Depth 76 mm
Frequency 50 Hz
Height 116 mm
Material UV Stabilised Polycarbonate
Mounting Centres 84 mm
Mounting Method Wall
Number Of Gangs 1 Gang
Orientation Vertical
Please Note with 3 Skins
Terminal Capacity 4 x 1.5 sq-mm
Power Rating 2-250 Watt
Width 42 mm
