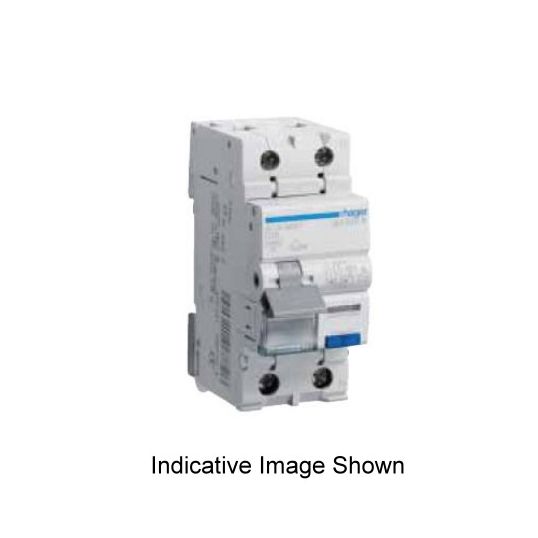

Hager Combination RCD Circuit Breaker RCBO 1P+N 20 Amp 230/240V AC 10 kA 2Module 36mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO Type A, 230-240 Volt, 20 Amp, 50 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 2 Module 36 mm, 1-16 sq-mm Flexible/1-25 sq-mm Rigid Terminal, Screw Connection, IP20, DIN Rail Mounting, 83 mm Height, 35 mm Width, 68 mm Depth

Key Specifications

Barcode (EAN-13)	3250611011910
SKU	HAGADA570T
Brand	Hager
Range Name	onekombo
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADA570T
Depth	68 mm
Connection Type	Screw
Height	83 mm
Current	20 Amp
Frequency	50 Hz
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	2 Module 36 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Terminal Connection	1-16 sq-mm Flexible / 1-25 sq-mm Rigid
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230-240 Volt
Width	35 mm
