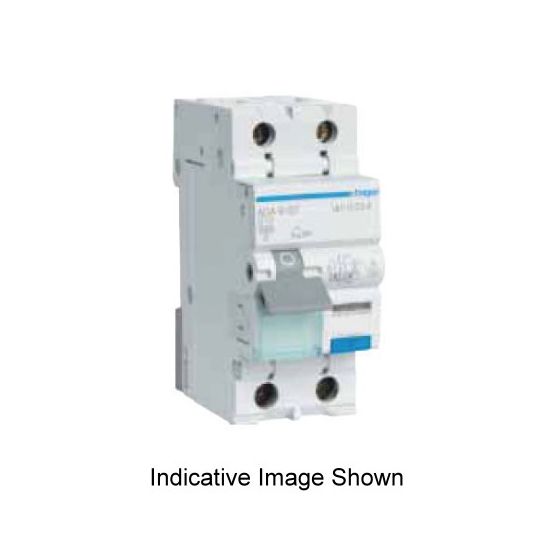

Hager Combination RCD Circuit Breaker RCBO 1P+N 13 Amp 230/240V AC 6 kA 2Module 36mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO, 13 Amp, 230/240 Volt AC, 50 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Magnetic Rating: 5/10 In, Number of Poles: 1P + N, Number of Modules: 2, 36mm Module Width, Trip Characteristic: C Curve, 1-16 mm Flexible/1-25 mm Rigid Terminal Connection, Screw, IP20, DIN Rail, 83mm Height, 35mm Width, 68mm Depth

Key Specifications

Barcode (EAN-13)	3250611011590
SKU	HAGADA913T
Brand	Hager
Range Name	onekombo
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADA913T
Depth	68 mm
Connection Type	Screw
Height	83 mm
Current	13 Amp
Frequency	50 Hz
Interrupt Capacity	6 kA
IP Rating	IP20
Modules	2 Module 36 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Terminal Connection	1-16 sq-mm Flexible / 1-25 sq-mm Rigid
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230-240 Volt
Width	35 mm
