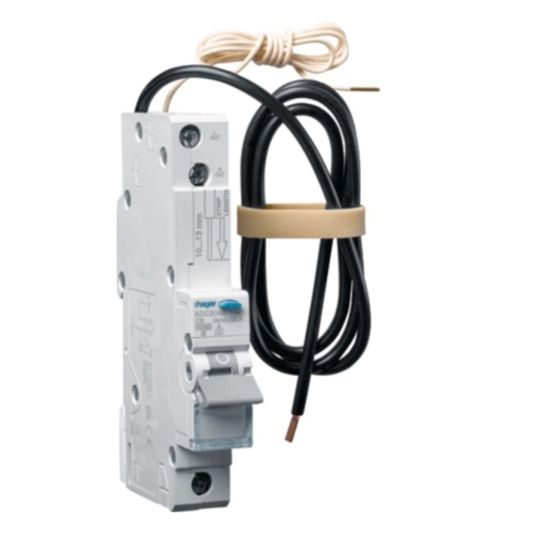

Hager RCBO Type A 230-240 VAC 6 Amp 10 kA 1 Pole 30 mA IP20 1 Module 17.8 mm

$Hager\Hager_ADC206B.JPG$

Description

Residual Current Breaker with Overcurrent (RCBO) Type A, 230-240 Volt AC, 6 Amp, 50/60 Hz, 10 kA Interrupt, 30 mA Trip, C Curve, 1 Pole, 1 Module 17.8 mm, 1-10 sq-mm/1-16 sq-mm Terminal, Screw, IP20, -5 to 40 deg C, 115 mm Height, 17.8 mm Width, 70 mm Depth

Key Specifications

Barcode (EAN-13)	3250611035466
SKU	HAGADC206B
Brand	Hager

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADC206B
Connection Type	Screw
Frequency	50/60 Hz
Current	6 Amp
Height	115 mm
Depth	70 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	1 Module 17.8 mm
Number Of Poles	1 Pole
Temperature	-5 to 40 deg C
Terminal Connection	1-10 sq-mm/1-16 sq-mm
Trip Characteristic	C Curve
Voltage	230-240 Volt AC
Width	17.8 mm
Trip Sensitivity	30 mA
