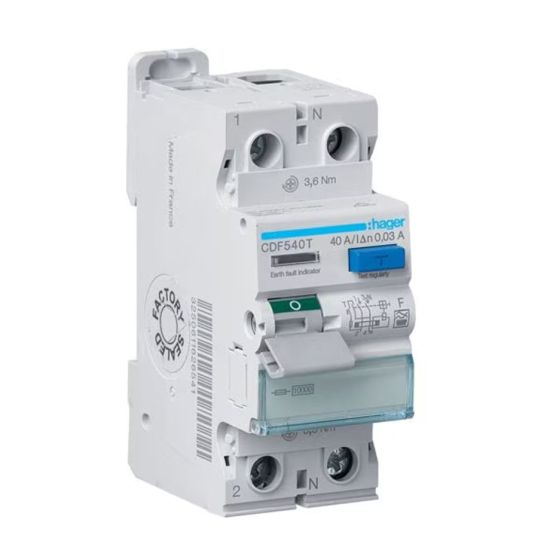

Hager Residual Current Circuit Breaker Type F 1P+N 40A 253V 30mA 2Module 36mm DIN Rail Mount

$Hager\Hager_CDF540T.jpg$

Description

The safety switch is designed to open a circuit automatically when protected system leaks a current to earth, greater than or equal to rated tripping current. Use in residential, commercial or industrial installations.

Key Specifications

Barcode (EAN-13)	3250611626541
SKU	HAGCDF540T
Brand	Hager

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Positive contact indication windows Earth fault indication window Load and line circuits may be connected top or bottom Bi-connect terminals enable supply from either cables in the cage or busbars in the slo
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	CDF540T
Conductor Size	1-16 sq-mm Flexible
Current	40 Amp
Depth	70 mm
Interrupt Capacity	10 kA
Height	85 mm
Electrical Life	10000 Cycles
Frequency	50 Hz
IP Rating	IP20
Modules	2 Module 36 mm
Mechanical Durability	20000 Cycles
Number Of Poles	1 Pole
Please Note	Type F
Mounting Method	DIN Rail
Temperature	-25 to 70 deg C
Terminal Type	Screw
Trip Sensitivity	30 mA
Tightening Torque	3.6 Nm
Voltage	253 Volt
Width	36 mm
