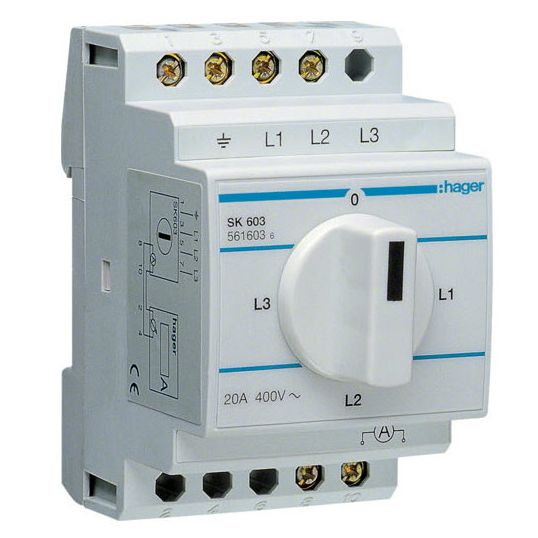

Hager Ammeter Selector Switch 3PH+N 20A 690V Screw DIN Rail Mount

$Hager\Hager_SK603.jpg$

Description

Ammeter Selector Switch, 690 V, 20 Amp, 50 Hz, 1 W, 3PH+N Poles, 3 Modules, 70mm Module Width, 1.5-10 mm Flexible, 1-6 mm Rigid Conductor, Screw, IP20, DIN Rail,-10 to 40 deg C, 85mm Height x 64mm Depth

Key Specifications

Barcode (EAN-13)	3250615616036
SKU	HAGSK603
Brand	Hager
Product Type	Selector Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SK603
Current	20 Amp
Conductor Size	1.5-10 sq-mm Flexible/1-6 sq-mm Rigid
Connection Type	Screw
Dimensions	85 mm Height x 64 mm Depth
Frequency	50 Hz
IP Rating	IP20
Modules	3 Module 70mm
Mounting Method	DIN Rail
Number Of Poles	3 Phase + N
Power Rating	1 Watt
Temperature	-10 to 40 deg C
Voltage	690 Volt
