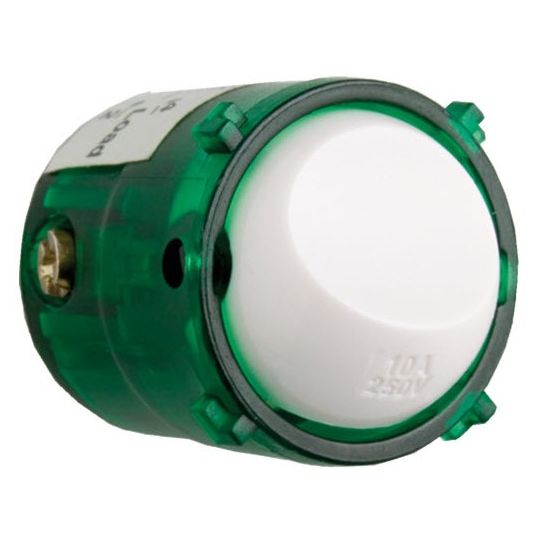

Hager Switch Mechanism Rocker ON/OFF 10A 250V DPDT 1 Way Matt White

$Hager\Hager_WBM10D-MW.jpg$

Description

Switch Mechanism 1 Way Switching, 250 Volt Switch, 10 Amp, 2 Pole, Rocker Switch Control, Screw Terminal, DPDT/On/Off, IP20, Flush Mounting, White, Matte

Key Specifications

Barcode (EAN-13)	3250617008679
SKU	HAGWBM10D-MW
Brand	Hager
Product Type	Switch Mechanisms

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Easy mechanism removal by standard 5 mm flat blade screwdriver by standard electricians pliers Rear housing colour coded for easy recognition of mechanism type All terminal screws are combination head Phillips number 1 and are backed off In-built arc shield on rocker and chemical resistant pivots All 250 Volt mechanisms have motor rating 10 Amp, 16 AX and 20 Amp terminals accommodate 4 x 1.5 sq-mm cables
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	WBM10D-MW
Colour	White
IP Rating	IP20
Control Type	Rocker Switch
Number Of Poles	2 Pole
Current	10 Amp
Finish	Matte
Terminal Type	Screw
Mounting Method	Flush
Voltage	250 Volt Switch
Switch Function	DPDT/ON/OFF
