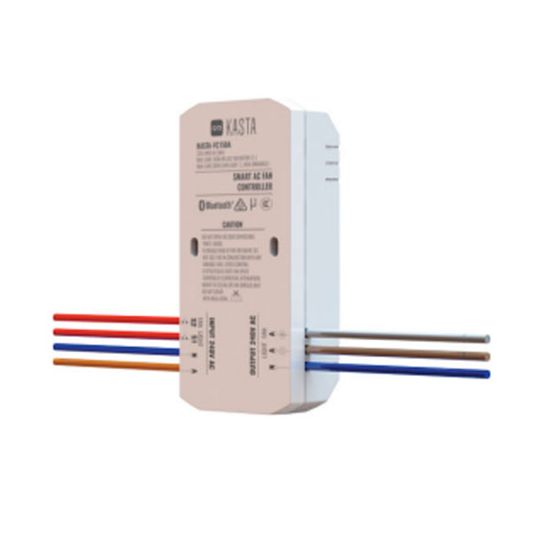

Haneco Kasta AC Ceiling Fan Controller Bluetooth 220-240V IP20

$Haneco_Lighting\Haneco_KASTA_FC150A.jpg$

Description

AC Ceiling Fan Controller, 220-240 Volt AC, Fan: 0.6 Amp, Light: 1.2 Amp, Power Rating: Fan: 150 Watt, Light: 300 Watt, Frequency: 50 Hz, Number of Wires: 7, Connection Type: Fly Leads, IP20, Material: Polycarbonate, Temperature:-20 to 40 deg C, Dimensions: 50mm Width x 25mm Height x 106mm Depth

Key Specifications

Barcode (EAN-13)	9354621000231
SKU	HANKASTA-FC150A
Brand	Haneco
Range Name	Kasta
Product Type	Fan Controllers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Control of AC powered ceiling fan motors (Max. 150Watt motor load) Provides capacitor switching for 3-speed control of fan speed Contains relay for ON/OFF control of fan light (Max. 300Watt load) 7-wire connection for power, fan, light and momentary switch mechanisms Short Press on input S1 to toggle fan light, short Press on input S2 to toggle fan and fan speed Long press on input S2 to cycle though fan speeds (Low>Medium>High, High>Medium> Low) Can be paired with KASTA remote switch devices for multi-way control (8x maximum) Configured and controlled using the KASTA app (iOS and Android) Supports Group, Scene, Timer and Scheduling automation functions Built in overvoltage and overcurrent protection
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	KASTA-FC150A
Connection Type	Fly Leads
Dimensions	50 mm Width x 25 mm Height x 106 mm Depth
Current	Fan: 0.6 Amp/Light: 1.2 Amp
Frequency	50 Hz
Material	Polycarbonate
IP Rating	IP20
Number of Wires	7 Wires
Temperature	-20 to 40 deg C
Voltage	220-240 Volt
