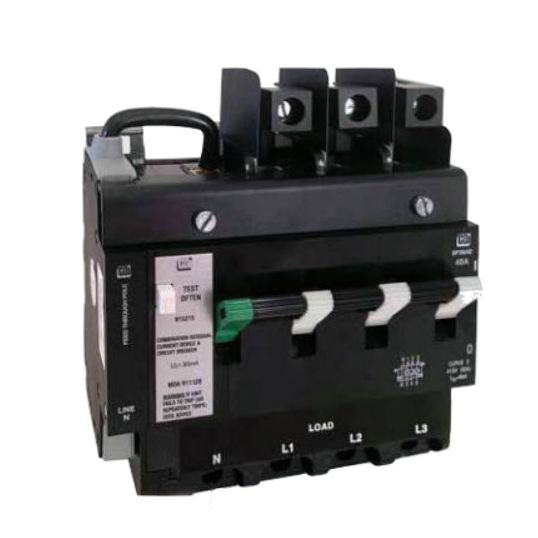

Heinelec Industrial Earth Leakage Circuit Breaker 4 Pole 40 Amp 110 to 240V AC 4Module 117mm Clip Tray Surface

Description

Industrial Earth Leakage Circuit Breaker Heavy Duty, 40 Amp, 110 to 240 Volt AC, 50/60 Hz, Trip Sensitivity: 30 mA, Number of Poles: 4P (3Ph + N), Number of Modules: 4, 117mm Module Width, 0.75 to 35 mm Terminal Connection, Shrouded Line and Load, IP2X, Clip Tray, Surface,-40 to 85 deg C, 119.5mm Height, 80mm Width, 116.4mm Depth

Key Specifications

SKU	HEISF36AE40
Brand	Heinelec
Range Name	SF36AE
Product Type	Earth Leakage Circuit Breaker

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Hydraulic-magnetic technology 100% rating capability, independent of ambient temperature Immune to pulsating DC load current Three pole plus switched neutral earth leakage protection Switches all active and neutral poles Precision tripping characteristics Reset immediately after overload Suitable to use for electrical isolation
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SF36AE40
Depth	116.4 mm
Connection Type	Shrouded Line and Load
Height	119.5 mm
Current	40 Amp
Frequency	50/60 Hz
IP Rating	IP2X
Modules	4 Module 117 mm
Mounting Method	Clip Tray/Surface
Number Of Poles	4 Pole
Temperature	-40 to 85 deg C
Terminal Connection	0.75-35 sq-mm
Trip Sensitivity	30 mA
Voltage	110-240 Volt
Width	80 mm
