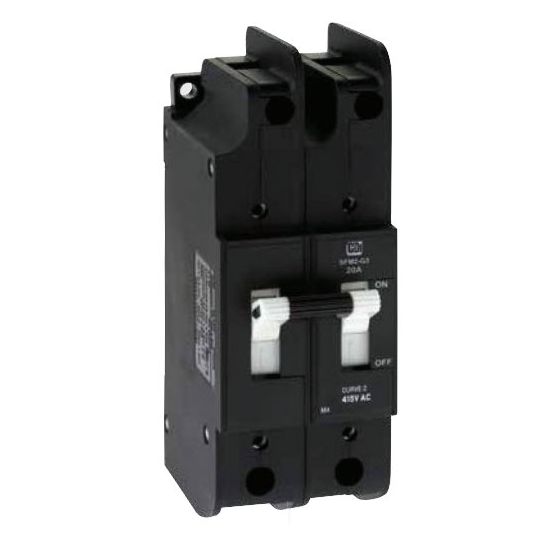

Heinelec Miniature Circuit Breaker 2 Pole 16 Amp 6 kA 2 Module 51.6mm Clip Tray Surface Mount

Description

Miniature Circuit Breaker, 240 Volt AC, 16 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 2, 51.6mm Module Width, Number of Poles: 2, Tunnel Terminal, IP2X, Clip Tray, Surface,-40 to 85 deg C, 149mm Height x 51.6mm Width x 71.8mm Depth

Key Specifications

SKU	HEISFM2-G3-16-2
Brand	Heinelec
Range Name	SFM Series
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC circuit breaker Hydrauilic magnetic technology 100% rating capacity independent of ambient temperture IP2X finger proof line and load box (tunnel) type terminals can accommodate copper cables up to 50 sq-mm Available in various currents and time delays Precision tripping characterstics Reset immediately after over load
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFM2-G3-16-2
Current	16 Amp
Depth	71.8 mm
Frequency	50/60 Hz
Height	149 mm
Interrupt Capacity	6 kA
IP Rating	IP2X
Mounting Method	Clip Tray/Surface
Number Of Poles	2 Pole
Temperature	-40 to 85 deg C
Terminal Type	Tunnel
Voltage	240 Volt
Width	51.6 mm
