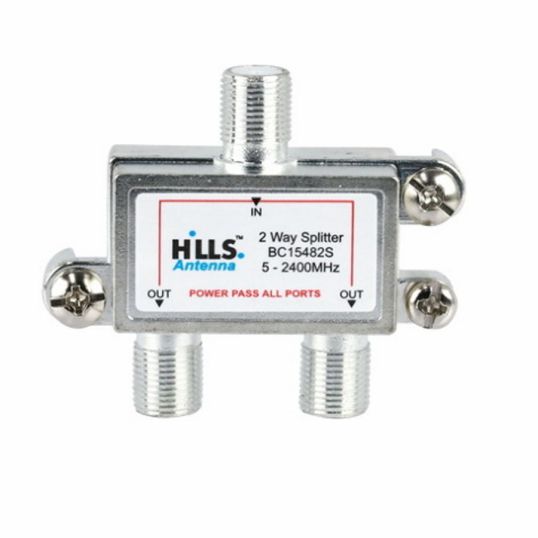

Hills Industries 2 Way TV Antenna Splitter All Ports Power Pass F Type Connector 2.4MHZ

$Hills_Industries\Hills_Industries_BC15482B.JPG$

Description

TV Antenna Splitter, 5-2400 MHz, 1 Inputs, 2 Outputs, 3.8-6 dB Insertion Loss, 18-22 dB Out-Tap, F-Type Connection, For Use With TV Antenna, Screw Mounting, Die-Cast Zinc, All Port Power Pass in Display Box

Key Specifications

Barcode (EAN-13)	9340591017164
SKU	HILBC15482B
Brand	Hills Industries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Indoor Use 2-Way Passive Splitter divides the signal power into 2 equal portions This is used when you require 2 TV outlets in the home and is designed for TV and Satellite signal applications 5 - 2400MHz It is important to mount the splitter as close as possible to the antenna The roof cavity is a good location The Splitter is designed for use with F-Type connections and also has an earthing lug, if so required
Standard Pack Size	100
UNSPSC Class	52161600
UOM	EA
Vendor Product	BC15482B
Connection Type	F-Type
For Use With	TV Antenna
Frequency	5-2400 MHz
Insertion Loss	3.8-6 dB
Material	Die-Cast Zinc
Mounting Method	Screw
Number of Inputs	1 In
Number of Outputs	2 Out
Out-Tap	18-22 dB
Please Note	All Port Power Pass in Display Box
Product Type	simple
