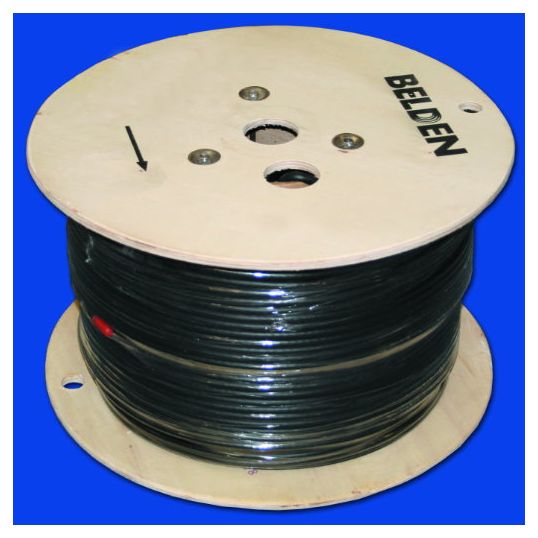

Belden RG6 Coaxial Cable Tri Shield Siamese 18AWG PE/AL/PVC Black

$Belden\Belden_BC73785.jpg$

Description

RG6 Coaxial Cable Tri Shield Siamese, 18 AWG, 1.02mm Conductor Diameter, Bend Radius: 76.2mm, 75 Ohm Impedance, Foam Polyethylene Insulation, PVC Sheath, 3 Layers: 2 x Aluminium Tape, 1 x Aluminium Braid Wire Screen, Black Sheath, 2 x 7.10mm Joined Figure-8 Overall Diameter,-40 to 80 deg C

Key Specifications

Barcode (EAN-13)	9311313527872
SKU	HILBC73785
Brand	Belden
Product Type	Coax Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	RL
Vendor Product	BC73785
Bend Radius	76.2 mm
Conductor Size	18 AWG
Conductor Diameter	1.02 mm
Insulation Material	Foam Polyethylene
Overall Diameter	2 x 7.10 mm Joined Figure-8
Screen Material	3 Layers: 2 x Aluminium Tape/1 x Aluminium Braid Wire
Sheath Material	PVC
Sheath Colour	Black
Temperature	-40 to 80 deg C
