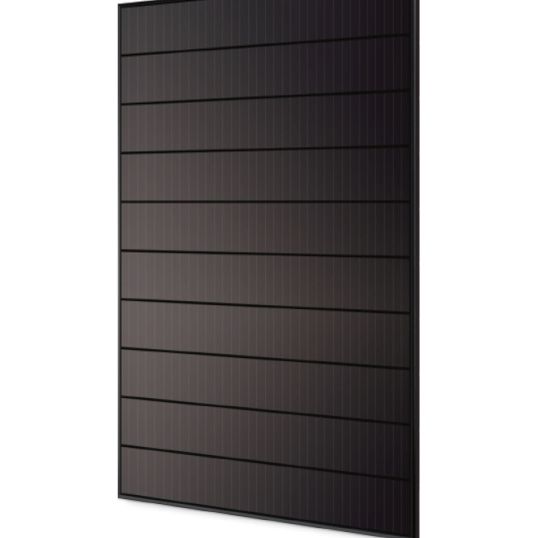

Hyundai VG Series Solar Panel 400W M6 PERC Mono-Crystalline Silicon Shingled 340 Cells Black Frame MC4-Evo2

chevron-left
loader
Loading...

Description

chevron-down
Solar Panel, PERC Mono-Crystalline Silicon Shingled, 340 Cell, 400 Watt, 38.6 Volt, 10.36 Amp, 46.4 Volt Open Circuit, 10.97 Amp Short Circuit, 20 Amp Max. Fuse Current, 1000/1500 Volt DC Max. System Voltage, 20.4% Efficiency, 0-5 Watt Power Tolerance, Staubli MC4-EVO2 Connector, 4mm Output Cables, Rated Current: 20 Amp, IP67, TUV&UL Junction Box, Anodized Aluminum Frame Construction, 3.2mm White Toughened Safety Glass Front Glass, -0.34%/deg C Temperature Coefficient, -40 to 85 deg C, 1719mm Length, 1140mm Width, 35mm Height, 22 kg, TUV Nord, CE, Solar Cycle, C&Q, Tier 1 Bloomberg

Key Specifications

chevron-down
SKU
HYUHIE-S400VG
Brand
Hyundai Energy Solutions

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • M6 PERC Shingled Technology
Standard Pack Size 806
UNSPSC Class 26111600
UOM EA
Vendor Product HIE-S400VG
Wattage 400 Watt
