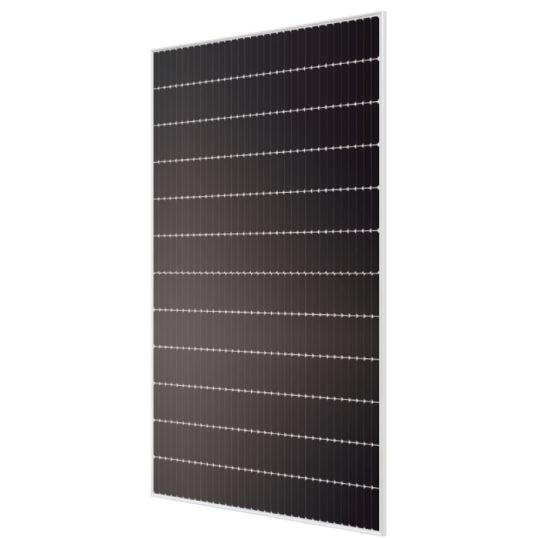

Hyundai VI Series Solar Panel 480 Watt M6 PERC Mono-Crystalline Silicon Shingled 408 Cells White Frame MC4-Evo2

chevron-left
loader
Loading...

Description

chevron-down
Solar Panel, PERC Mono-Crystalline Silicon Shingled, 408 Cell, 480 Watt, 38.8 Volt, 12.37 Amp, 46.6 Volt Open Circuit, 13.16 Amp Short Circuit, 20 Amp Max. Fuse Current, 1000/1500 Volt DC Max. System Voltage, 20.5% Efficiency, 0-5 Watt Power Tolerance, Staubli MC4-EVO2 Connector, 4mm Output Cables, Rated Current: 20 Amp, IP67, TUV&UL, with 2 Bypass Diodes Junction Box, White Anodized Aluminum Frame Construction, 3.2mm White Toughened Safety Glass Front Glass, -0.34%/deg C Temperature Coefficient, -40 to 85 deg C, 2056mm Length, 1140mm Width, 35mm Height, 25 kg, TUV Nord, CE, Solar Cycle, C&Q, Tier 1 Bloomberg

Key Specifications

chevron-down
SKU
HYUHIE-S480VI
Brand
Hyundai Energy Solutions

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • M6 PERC Shingled Technology
  • White Frame
Standard Pack Size 682
UNSPSC Class 26111600
UOM EA
Vendor Product HIE-S480VI
Wattage 480 Watt
