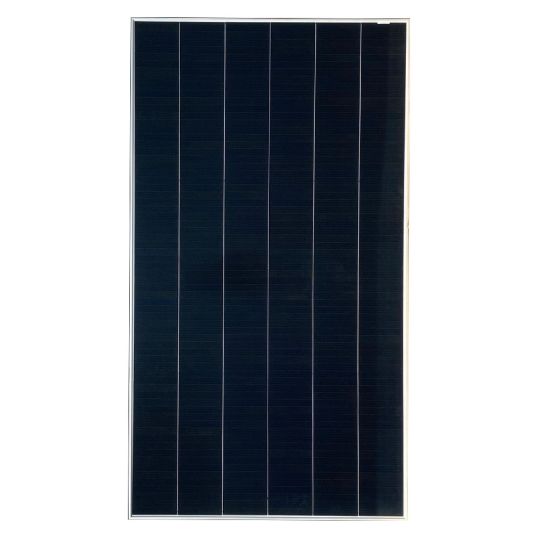

Hyundai Energy Solutions Solar Panel 660W PERC Monocrystalline Silicon Shingled 414 Cells 39.9V 16.98A Anodized Aluminum

$Hyundai_Energy\Hyundai-Energy_HIE-S660DJ.jpg$

Description

Solar Panel, G12 Model, PERC Monocrystalline Silicon Shingled Cell, 414, 660 Watt, 39.9 Volt Maximum, 16.98 Amp Maximum, 38.9 Volt Open Circuit, 18.06 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt DC Max. System, 21.2% Efficiency, 0-5 Watt Power Tolerance, PV-KST4-EVO2/xy_UR PV-KBT4-EVO Connector

Key Specifications

SKU	HYUHIE-S660DJ
Brand	Hyundai Energy Solutions
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	G12 PERC Shingled-G12 PERC Shingled Technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space Mechanical Strength-Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind. Reliable Warranty-Global brand with powerful financial strength provide reliable 25 year warranty UL / VDE Test Labs- Hyundai's R&D center is an accredited test laboratory of both UL and VDE
Standard Pack Size	31
UNSPSC Class	26111600
UOM	EA
Vendor Product	HIE-S660DJ
Cell Type	Monocrystalline
Connector Type	PV-KST4-EVO2/xy_UR PV-KBT4-EVO
Certifications	CE
Efficiency	21.20%
Frame Construction	Anodized Aluminum
Front Glass	2 mm Tempered glass
Height	35 mm
Item Weight	39 kg
Junction Box	IP68 / 3 Diodes
Max. Fuse Current	30 Amp
Max. System Voltage	1500 Volt DC
Model	G12
Number Of Cells	414
Open Circuit Voltage	38.9 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Output Cables	1200 mm Length, 1 x 4 sq-mm
Temperature Coefficient	-0.34%/ deg C
Warranty	25 Years Product / 30 Years Performance
Wattage	660 Watt
Width	1303 mm
