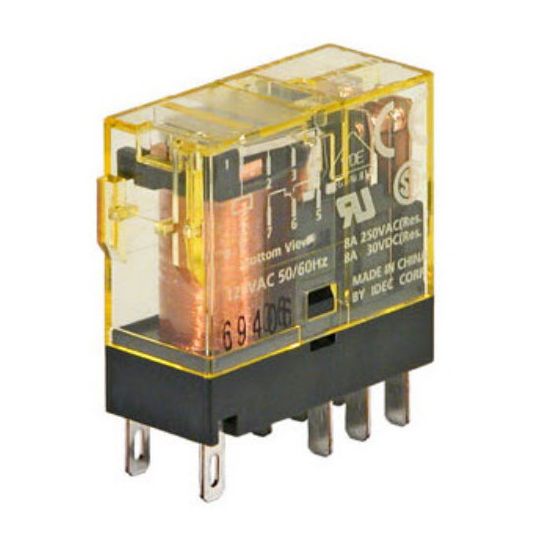

IDEC Miniature General Purpose Relay Plug-In Mount 2P DPDT 8A 24V 8 Pin Flat

Description

Miniature General Purpose Relay, 24 Volt AC Coil Voltage, 8 Amp, 0.9 VA, 8 Pin Flat, 2 Pole, DPDT Configuration, 243 Ohm, 15 Operate/10 Release ms Operating Time, 200000 Cycles AC Load/100000 Cycles DC Load, Blade Terminal, Plug-In Mounting, IP40, Silver Nickel Alloy Contact, -40 to 70 deg C, 28.8 mm Height, 31.1 mm Width, 12.7 mm Depth

Key Specifications

Barcode (EAN-13)	9322017188504
SKU	IDCRJ2S-CL-A24
Brand	IDEC
Range Name	RJ Series
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Ideal for space saving application Up to 16 Amp rated contacts Highly visible Indicator LED using IDEC's unique light guide design 30 million cycles (AC coil) and 50 million cycles (DC coil) mechanical life
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RJ2S-CL-A24
Contact Configuration	DPDT
Contact Material	Silver Nickel Alloy
Current	8 Amp
Height	28.8 mm
Depth	12.7 mm
Mounting Method	Plug-In
IP Rating	IP40
Number Of Poles	2 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	15 Operate/10 Release ms
Pin Configuration	8 Pin Flat
Operating Cycles	200000 Cycles AC Load/100000 Cycles DC Load
Temperature	-40 to 70 deg C
Power Rating	0.9 VA
Resistance	243 Ohm
Terminal Type	Blade
Width	31.1 mm
