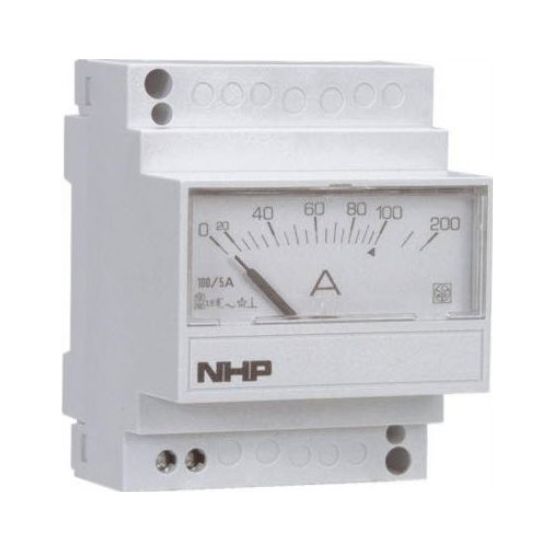

IME AC Ammeter Analogue Moving Iron Current Transformer 0-5A x 5 90Deg 70mm W DIN 35 Rail Mount

Description

AC Ammeter Analogue Moving Iron, 0 to 5 Amp With x 2 Over-Scale, 5/10 Amp, 50/45-65 Hz, Current Transformer, 90 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 89.5 mm Height x 70 mm Width, DIN 35 Rail Mount, Polycarbonate, 45 mm Height x 70 mm Width x 65.6 mm Depth

Key Specifications

SKU	IMED4EACT5A2X5A
Brand	IME
Range Name	D4
Product Type	Ammeters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Accuracy class 1.5 IP52 rated front frame
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	D4EACT5A2X5A
Current	5/10 Amp
Depth	65.6 mm
Display	Analogue
Frame Size	89.5mm x 70mm
Frequency	50/45-65 Hz
Height	45 mm
Mounting Method	DIN Rail
Operation Form	Current Transformer
Readout Form	90 deg Deflection Accuracy Class 1.5
Scale	0 to 5 Amp with x2 Over-Scale
Temperature	-25 to 50 deg C
Width	70 mm
