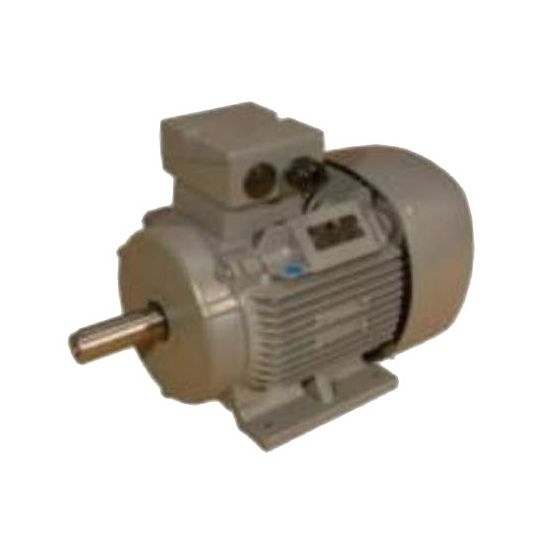

Invertek Electric Motor Squirrel Cage Induction 4P 0.25kW 3Ph 240D/415YV 711 Frame Foot/Flange Mount

Description

Electric Motor Squirrel Cage Induction, 240 D/415 Y Volt AC, 0.76/0.7 Amp, 0.25 kW, 50 Hz, 3 Phase, 1395 rpm, 4 Pole, IP55, Frame: 711, Shaft Size: 14 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 2.3-2.4 Tn, Foot/Flange Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy

Key Specifications

SKU	INVM34000254IMA
Brand	Invertek
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Low Weight Construction
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	M34000254IMA
Current	0.76/0.7 Amp
Frame	Size 711
Frequency	50 Hz
IP Rating	IP55
Insulation Class	Class F
Horsepower	0.25 kW
Material	Aluminium Alloy
Number Of Poles	4 Pole
Mounting Method	Foot/Flange
Phase	3 Phase
Shaft Size	14 mm
Rotation	Anti-Clockwise
Speed	1395 rpm
Torque Rating	2.3-2.4 Tn
Temperature	40 deg C
Voltage	240D-415Y Volt AC
