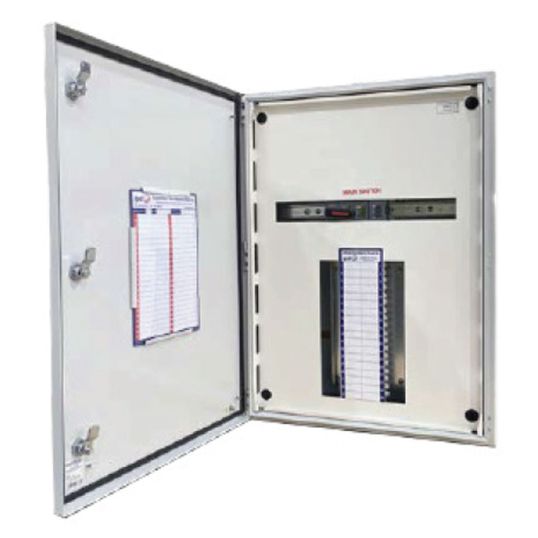

IPD Evolution E65 Distribution Board with OT250 Load Break 250A Mainswitch 60 Pole Grey IP65

chevron-left
loader
Loading...

Description

chevron-down
Distribution Board, 250 Amp, 60, IP65, Mild Steel, Grey RAL 7035, 1000mm Height x 600mm Width x 200mm Depth

Key Specifications

chevron-down
SKU
IPDE65L60T250
Brand
IPD
Product Type
Distribution Boards

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • E65 IP65 is rate tested to AS60529-2004 by UL certificate 129169-02/A1
  • 1.6mm mild steel shell, partially welded construction
  • Continuous machine-injected polyurethane gasket
  • Door hinge-mild steel 1 fixed pin and additional hinges are spring release
  • Paint is epoxy polyester powder, semi-gloss 50-70%, 60-80 micron & cured at 180 deg C
  • Twin gland plate with polyurethane gasket
  • Standard with 3 IEC steel locks
  • Mounting plate-aluminium zinc 2mm
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product E65L60T250
Colour Grey
Current 250 Amp
Dimensions 1000 mm Height x 600 mm Width x 200 mm Depth
IP Rating IP65
Material Mild Steel
Number Of Poles 60P
