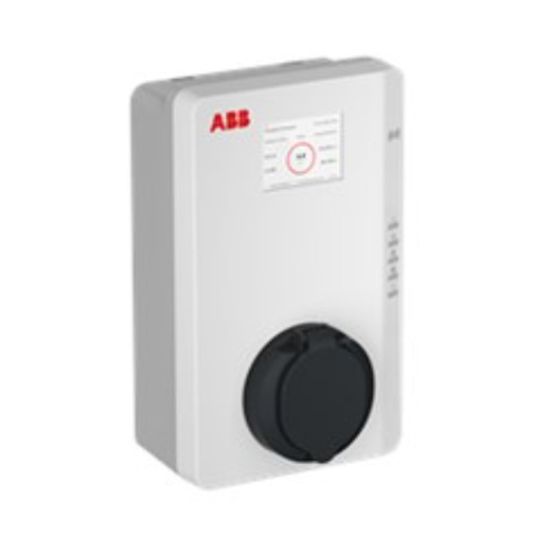

IPD Terra AC EV Charger Wallbox 1 Pole 230VAC 7.4kW Wi-Fi Bluetooth Daisy-Chain Ethernet 4G Rfid Mid & Display
Loading...
Description
EV Charger Wallbox, 230 Volt AC Input Voltage, 32 Amp Input Current, Socket, Type 2 Connector, IP54, -30 to 50 deg C
Key Specifications
| SKU |
IPDTAC-W7-T-RD-MC-0
|
|---|---|
| Brand |
IPD
|
| Product Type |
AC/DC Charging Station
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | TAC-W7-T-RD-MC-0 |
| Connector Type | Type 2 |
| Depth | 401 mm |
| Height | 201 mm |
| Input Current | 32 Amp |
| Input Voltage | 230 Volt |
| Input Frequency | 50/60 Hz |
| IP Rating | IP54 |
| Item Weight | 3.5 kg |
| Phase | 1 Phase |
| Operating Temperature | -30 to 50 deg C |
| Power Output | 7 kW |
| Width | 261 mm |
| Wireless Technology | 4G |
