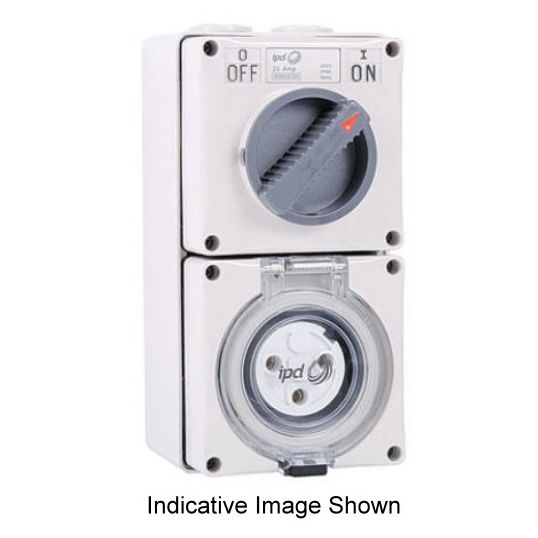

IPD Switch Socket Outlet Surface Mounting Weatherproof 1Ph 20A 250V 3 Pin Round Light Grey IP66
Loading...
Description
Switch Socket Outlet Surface Mounting Weatherproof, 1 Phase, 20 Amp, 250 Volt, 2 Pole, 3 Pin Round, Screw, 2 x M25, 1 x M32, Terminal Capacity: 16 mm, Surface Mount, IP66, Polycarbonate, Light Grey, 197 mm Height, 101 mm Width, 91 mm Depth, For use with Straight Plug Top W66SP320
Key Specifications
| SKU |
IPDW66SS320
|
|---|---|
| Brand |
IPD
|
| Product Type |
Switch Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 20 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | W66SS320 |
| Colour | Light Grey |
| Conduit Entry | 2 x M25/1 x M32 |
| Connection Type | Screw |
| Current | 20 Amp |
| Depth | 91 mm |
| Height | 197 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Number Of Poles | 2 Pole |
| Phase | 1 Phase |
| Pin Configuration | 3 Pin Round |
| Please Note | For use with Straight Plug Top W66SP320 |
| Terminal Capacity | 16 mm |
| Voltage | 250 Volt |
| Width | 101 mm |
