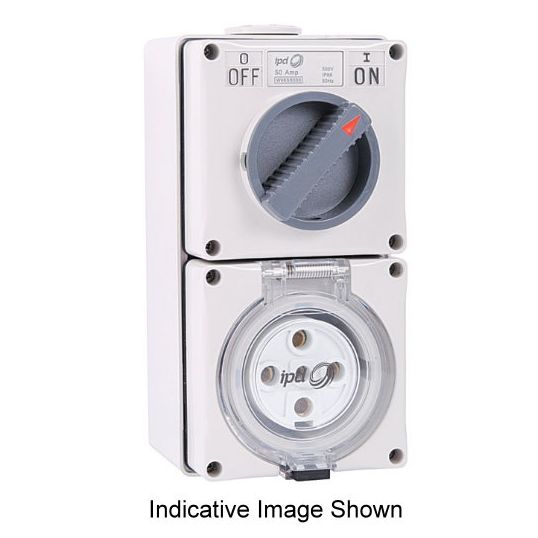

IPD Switch Socket Outlet Surface Mounting Weatherproof 3Ph 3P 20A 500V 5 Pin Round Light Grey IP66
Loading...
Description
Switched Socket Outlet Weatherproof, 500 Volt AC, 20 Amp AC1, 3 Phase Phase, 3 Pole, 4/5 Pin Round, Screw Tunnel Connection, 2xM25/1xM32 Conduit Entry, 16 mm Terminal Capacity, Surface Mounting, IP66, Light Grey, 197 mm Height, 101 mm Width, 91 mm Depth, For use with Straight and Angled Plug Top W66SP520 W66AP520
Key Specifications
| Barcode (EAN-13) |
9322017195106
|
|---|---|
| SKU |
IPDW66SS520
|
| Brand |
IPD
|
| Range Name |
W66
|
| Product Type |
Switch Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 20 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | W66SS520 |
| Colour | Light Grey |
| Conduit Entry | 2xM25/1xM32 |
| Connection Type | Screw Tunnel |
| Depth | 91 mm |
| Height | 197 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Number Of Poles | 3 Pole |
| Phase | 3 Phase |
| Pin Configuration | 4/5 Pin Round |
| Please Note | For use with Straight and Angled Plug Top W66SP520 W66AP520 |
| Terminal Capacity | 16 mm |
| Width | 101 mm |
