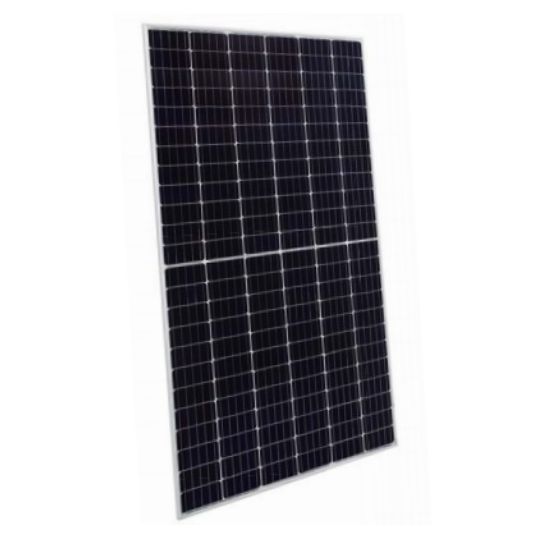

Jinko Solar Eagle HC Solar Panel Half Cell 375W Mono-Crystalline 72 Cells

Name: Solar Panel Half Cell 375W Mono 72 Cells
SKU: JKM375M-72H
Availability: InStock

$Jinko_Solar\JinkoSolar_JKM375M-72H.jpg$

Description

Solar Panel, Monocrystalline Cell Type, 72 Number of Cells, 375 Watt Max. Power, 40.3 Volt Max. Voltage, 9.31 Amp Max. Current, 48.9 Volt Open Circuit Voltage, 9.63 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 19.02% Module Efficiency, 0 - 3% Power Tolerance, Anode 290 mm, Cathode 145 mm Output Cables, IP67 Junction Box, Anodize Aluminium Alloy Frame Construction, 4 mm, High Transmission, Low Iron, Tempered Glass Front Glass, 0.37%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1987 mm ? 992 mm ? 40 mm Dimensions, 26.5 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications

Key Specifications

SKU	JKM375M-72H
Brand	Jinko Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	5 busbar solar cell High efficiency PID resistant Low-light performance Severe weather resilience Durability against extreme environmental conditions
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM375M-72H
Certifications	ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730
Cell Type	Monocrystalline
Frame Construction	Anodized Aluminium
Front Glass	4 mm/High Transmission/Low Iron/Tempered Glass
Item Weight	26.5 kg
Junction Box	IP67
Max. System Voltage	1000 Volt DC (IEC)
Max. Current	9.31 Amp
Max. Voltage	40.3 Volt
Max. Fuse Current	20 Amp
Number Of Cells	72
Open Circuit Voltage	48.9 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-3%
Short Circuit Current	9.63 Amp
Output Cables	Anode 290 mm/Cathode 145 mm
Temperature Coefficient	0.37%/deg C
Wattage	375 Watt
