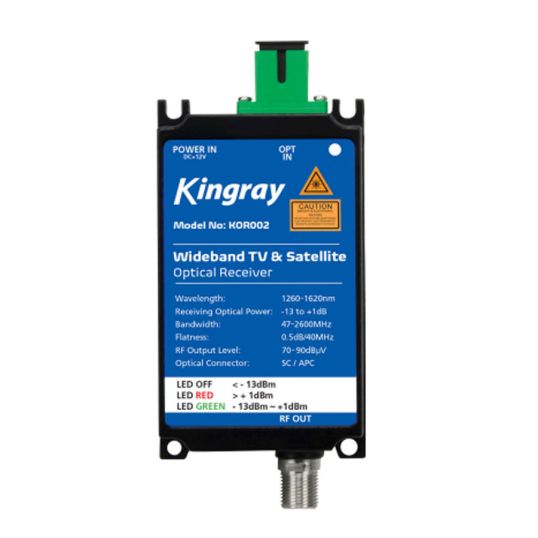

Kingray Optical Fibre Receiver 1550nm with RF Output Range 47-2600 MHz

chevron-left
loader
Loading...

Description

chevron-down
Optical Fibre Receiver, 47-2600 MHz, Optical Connector: SC/APC, RF Connector: F-Female Connection

Key Specifications

chevron-down
SKU
KIGKOR002
Brand
Kingray

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Input Wavelength 1260~1620nm
  • Receiving Sensitivity Range: -13dBm to +1dBm
  • RF Output Level: Typically 70~90dB
  • High linearity, suitable for Digital TV and SAT-IF application
  • Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signal can be received via a single fibre at the same time
  • LED Indicator
  • Compact in design, wall mountable and light weight
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product KOR002
Connection Type Optical Connector: SC/APC; RF Connector: F-Female
Frequency 47-2600 MHz
Product Type simple
