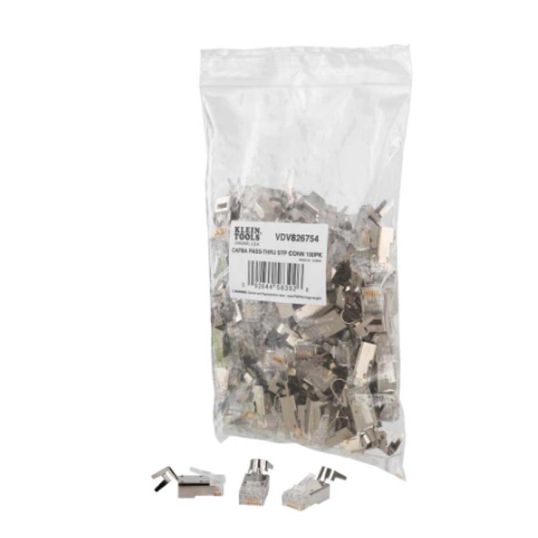

Klein Pass-Thru Modular Data Plug RJ45 CAT6A Shielded (STP) 100 Pack

Description

Modular Data Plug, RJ45 Connector, 8 Position, 8 Contact, CAT6A STP, Gold-Plated Contact, PVC Plastic Housing, 20mm Length, 15mm Height, 10mm Width

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Klein exclusive Pass-Thru Connectors provide fast, reliable connector installations for data applications For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations Fully compliant with Power Over Ethernet (PoE and PoE+) standards Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended) 8 position, 8 contact pass-through type data plugs for solid or stranded wire Category 6A performance per TIA/EIA-568-B.2 50 µ-in gold plating on all contact surfaces Max diameter for CAT6A Pass-Thru Connectors is 1.1mm
Standard Pack Size	100
UNSPSC Class	39121400
UOM	PK
Vendor Product	A-VDV826-754
Cable Type	CAT6A STP
Connector Type	RJ45
Contact Material	Gold Plated
Height	15mm
Housing Material	PVC Plastic
Number of Contacts	8
Number of Positions	8
Width	10mm
