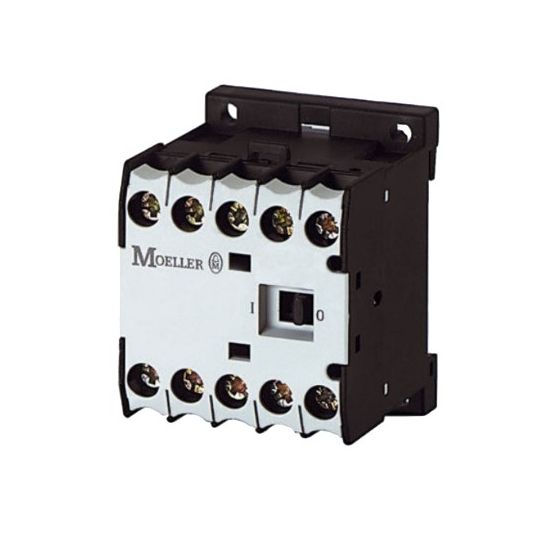

Eaton Moeller Contactor Control Relay Switching 4 Pole 10/6A 415/480V 4NO DIN Rail/Base Mount
Loading...
Description
Contactor Control Relay Switching, AC15 Rating: 240 Volt at 10 Amp/415 Volt AC at 6 A, 415/480 Volt AC, 4 NO, 4 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -25 to 50 deg C, 58 mm Height, 45 mm Width, 83 mm Depth
Key Specifications
| Barcode (EAN-13) |
9323952178797
|
|---|---|
| SKU |
KLODILER-40415V
|
| Brand |
Eaton Moeller
|
| Range Name |
X-Start
|
| Product Type |
Contactors Switching
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | DILER-40(415V50HZ-480V60HZ) |
| Contact Configuration | 4 Normally Opened |
| AC15 Rating | 10 Amp 240 Volt/6 Amp 415 Volt |
| Depth | 83 mm |
| Height | 58 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 415-480 Volt AC |
| Temperature | -25 to 50 deg C |
| Width | 45 mm |
| Terminal Connection | Screw |
