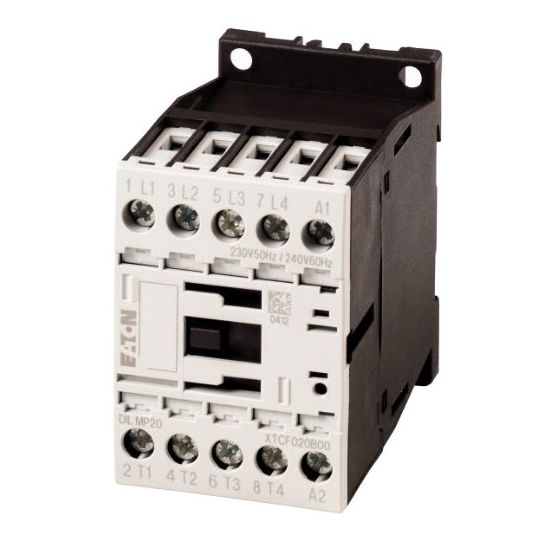

Eaton Moeller Contactor General Purpose AC Operated 4 Pole 5.5kW 12A AC3 22A AC1 110/120V 4NO Main DIN Rail/Base Mount

$Eaton\Eaton_DILMP20.jpg$

Description

Contactor General Purpose AC Operated, 110/120 Volt AC at 50/60 Hz, AC3 Rating (kW): 3.5 at 220/230 Volt, 4 at 240 Volt, 5.5 at 380/400 Volt, AC3 Rating (Amps): 12 at 220/230/240/380/400/415/440 Volt, 7 at 660/690 Volt, AC1 Rating (Amps): 22 Open, 18 Enclosed, 400 Volt AC, 4 NO Main, 4 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -25 to 60 deg C, 68 mm Height, 45 mm Width, 117 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase

Key Specifications

SKU	KLODILMP20110V50HZ
Brand	Eaton Moeller
Range Name	X-Start
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Contactors for motors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	DILMP20(110V50HZ-120V60HZ)
AC1 Rating (Amps)	22/18 Amp AC1
AC3 Rating (Amps)	12/7 Amp AC3
AC3 Rating (kW)	3.5/4/5.5 kW
Contact Configuration	4 Normally Opened
Contact Voltage	400 Volt AC
Depth	117 mm
Height	68 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base
Number Of Poles	4 Pole
Operating Coil Voltage	110-120 Volt AC @ 50/60 Hz
Please Note	Also suitable for motors with efficiency class IE3 3 Phase
Temperature	-25 to 60 deg C
Terminal Connection	Screw
Width	45 mm
