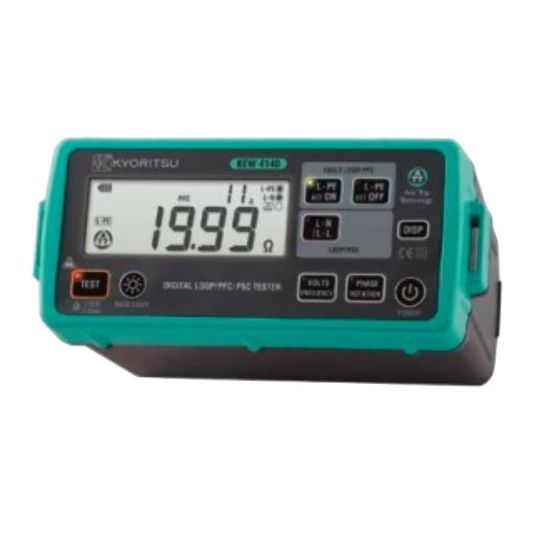

Kyoritsu Loop Tester Impedance & PSC Meter

Description

Loop Tester, 230 Volt, 50/60 Hz, LR6/R6 Battery, 0 to 40 deg C, Digital Display, 20 to 2000 Ohm Range, +/-3% Accuracy, 84 x 184 x 133mm, Impedance & PSC Meter

Key Specifications

SKU	KYO4140
Brand	Kyoritsu

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Anti-Trip Technology for complete trip free Loop testing on all RCDs rated 30mA and above Dual Display allows simultaneous measurements like Loop and PFC/PSC Two wire connection for Loop L-L, L-N and PSC testing is possible Phase rotation, Voltage and Frequency measurements Lock-down test button for 'hands free' testing with auto-start operation Display and front panel keyboards with Backlight to be visible in dark places Water and Dust proof (IP54)
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	4140
Dimensions	84 x 184 x 133 mm
Display Type	Digital
Frequency	50/60 Hz
Please Note	Impedance & PSC Meter
Power Supply	LR6/R6
Product Type	simple
Temperature	0 to 40 deg C
Voltage	230 Volt
