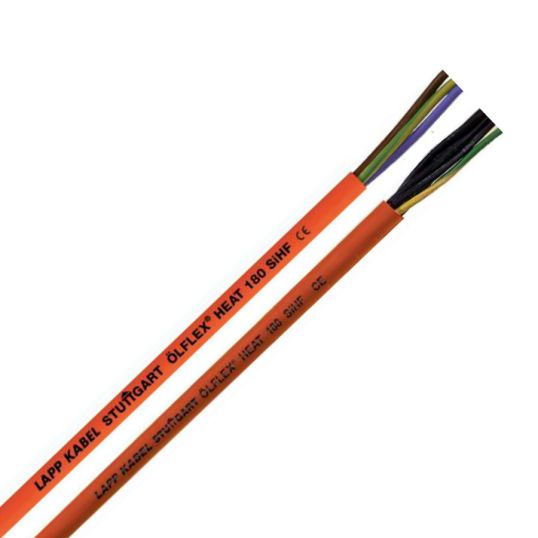

Lapp Kabel 2.5mm 3 Core + Earth Red/Brown High Temperature Flexible Wire Double Insulated Silicone Rubber

$Lapp_Kabel\Lapp_Kabel_460213_460223_460373.jpg$

Description

Flexible Wire, High Temperature, Double Insulated, 2.5 mm, Tinned Annealed Copper, 0.3-0.5 kV, 3 Core + Earth, 10.6 mm Overall Diameter, 42.4 mm Static/159 mm Flexible Bend Radius, Black/White Numerals Core, Silicone Rubber Insulation, Silicone Rubber Sheath, Red/Brown Sheath, -50 to 180 deg C, EN 50525-2-83

Key Specifications

SKU	LAP00460213
Brand	Lapp Kabel
Range Name	Olflex Heat 180

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flexibility simplifies installation where space is limited Halogen free (IEC 60754-1), no Corrosive gases (IEC 60754-2) Flame retardant (IEC 60331-1-2) Resistant to multitude of oils, alcohols, vegetable and animal fats and chemical substance Adequate Ventilation must be ensured since the mechanical properties of silicone cable decreases from 100 deg C in the absence of air
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	00460213
Bend Radius	Static 42.4 mm - Flexible 159 mm
Conductor Size	2.5 mm
Conductor Type	Tinned Annealed Copper
Core Colours	Black/White Numerals
Insulation Material	Silicone Rubber
Number of Cores	3 Core + Earth
Overall Diameter	10.6 mm
Sheath Material	Silicone Rubber
Sheath Colour	Red/Brown
Standards	EN 50525-2-83
Temperature	-50 to 180 deg C
Voltage	0.3-0.5 kV
