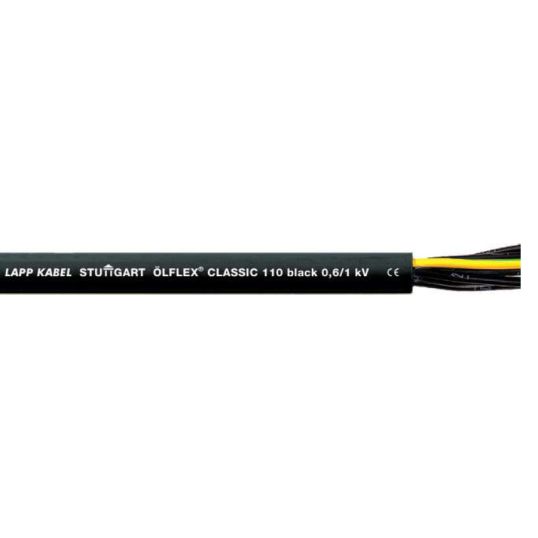

Lapp Kabel Olflex Classic 110 Flexible Control Cable Unscreened 24 Core & Earth 1.5mm 0.6/1kV Copper PVC/PVC Black

$Lapp_Kabel\Lapp_Kabel_Olflex_Classic110Black.jpg$

Description

Flexible Control Cable, 1.5 mm, Bare Copper, 0.6-1 kV, 24 Core + Earth, 21.7 mm Overall Diameter, Static 86.8 mm Flexible 325.5 mm Bend Radius, 13.3 Ohm/km Conductor Resistance, Black/Green/Yellow/White Numerals Core, PVC Insulation, PVC Sheath, Black Sheath, Static -40 to 80 deg C Flexible -5 to 70 deg C, IEC 60228 Class 5 EN 50525-2-51

Key Specifications

SKU	LAP1120328
Brand	Lapp Kabel
Range Name	Olflex Classic 110
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant UV and weather resistant Ozone resistant Good outdoor performance
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1120328
Bend Radius	Static 86.8 mm - Flexible 325.5 mm
Conductor Resistance	13.3 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Bare Copper
Core Colours	Black/Green/Yellow/White Numerals
Insulation Material	PVC
Number of Cores	24 Core + Earth
Overall Diameter	21.7 mm
Sheath Colour	Black
Sheath Material	PVC
Standards	IEC 60228 Class 5 EN 50525-2-51
Temperature	Static -40 to 80 deg C Flexible -5 to 70 deg C
Voltage	0.6-1 kV
